City & Commuter E-Bikes

FALCON ZR-CP017

A 26-inch city e-bike with a 350 W hub motor, 48 V 10.4 Ah battery and Shimano 7-speed drivetrain.

Motor
350 W hub motor
Battery
48 V 10.4 Ah Li-ion
Maximum Load / Payload
100 kg
Tire / Wheel
26-inch wheels / inner tubes
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP017
Motor
350 W hub motor
Battery
48 V 10.4 Ah Li-ion
Display
Digital display
Maximum Load / Payload
100 kg
Maximum Speed
40 km/h / Shimano 7-speed
Range / Mileage
45 km

CHASSIS & COMPONENTS

Frame
High-Carbon Steel
Tire / Wheel
26-inch wheels / inner tubes
Hub
Aluminum-alloy wheel construction
Brake / Braking
Disc brakes; braking distance < 4 m
Light
LED headlight

DIMENSIONS & LOGISTICS

Net Weight
15 kg
Ground Clearance
190 mm
Wheelbase
1,140 mm
Container Loading
260 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Seat Height from Ground
870 mm
Gradeability
15°
Drive Control
Twist throttle, stepless
Transmission
Shimano 7-speed
Wheel Construction
Inner tube
Frame Color
Customization available
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

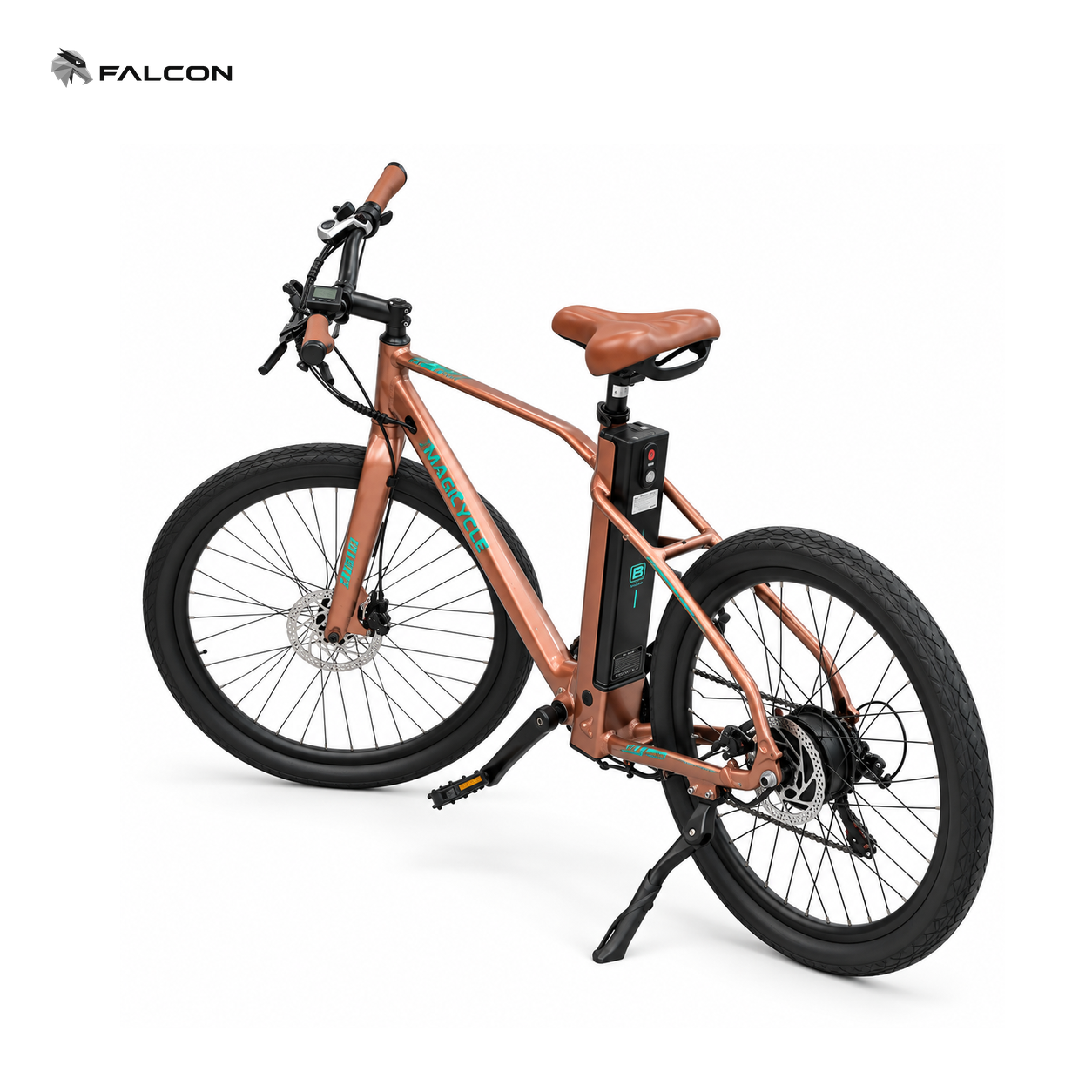

26-Inch 350W Electric Bike with 48V 10.4Ah Battery & Shimano 7-Speed-ZR-CP017

The FALCON ZR-CP013 is a 26-inch city and commuter platform with a 350 W hub motor, 48 V 10.4 Ah lithium battery and Shimano 7-speed drivetrain. Disc brakes and configurable frame colors support distributor and private-label programs.
