Electric Dirt Bikes & Motorcycles

FALCON ZR-CP056

This fat tire electric moped bike features a 500W hub m […]

Motor: 500 W rated; 48 V 500 W hub motor
Battery: 48 V 13 Ah Li-ion
Maximum Load / Payload: 200 kg
Tire / Wheel: 20-inch wheels; 20 × 4.0 in butyl-rubber tube-type tires

REQUEST A QUOTE OEM / ODM

FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference: ZR-CP056
Motor: 500 W rated; 48 V 500 W hub motor
Battery: 48 V 13 Ah Li-ion

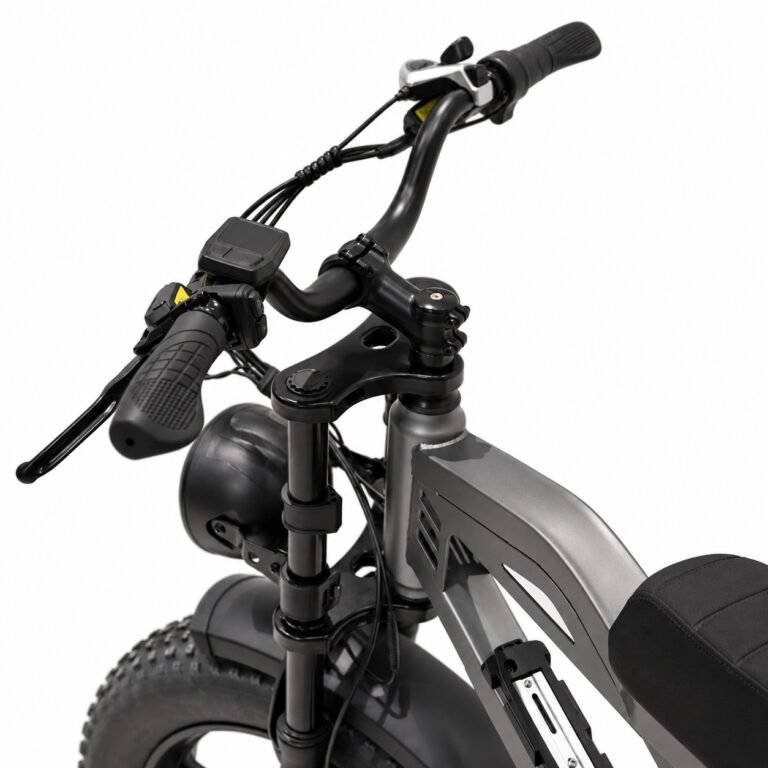

Display: VA display
Climbing Ability: 15°
Maximum Load / Payload: 200 kg
Maximum Speed: 40 km/h
Range / Mileage: 40 km

CHASSIS & COMPONENTS

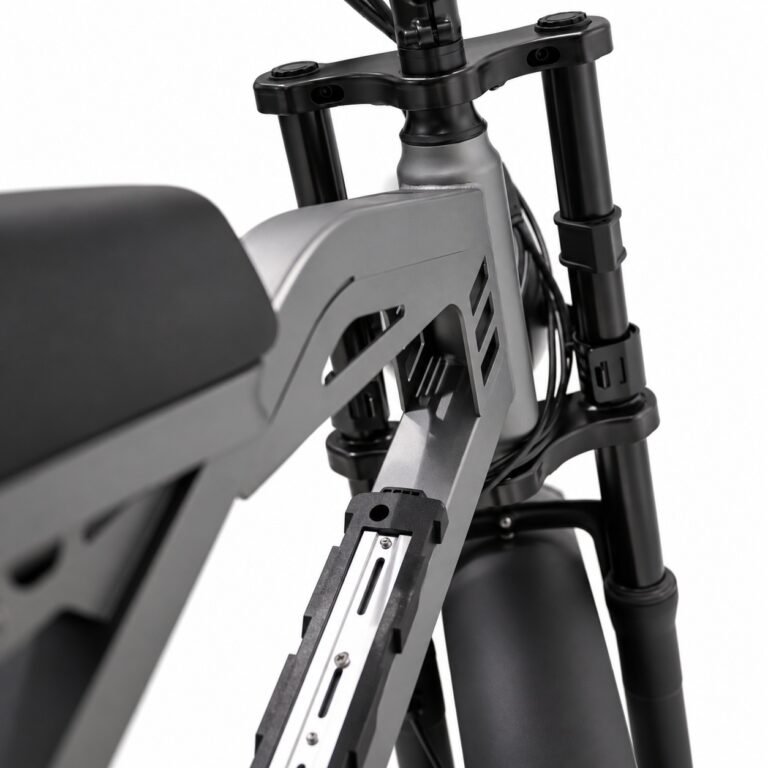

Frame: High-carbon steel
Tire / Wheel: 20-inch wheels; 20 × 4.0 in butyl-rubber tube-type tires
Hub: 20-inch fat-bike magnesium-alloy wheel

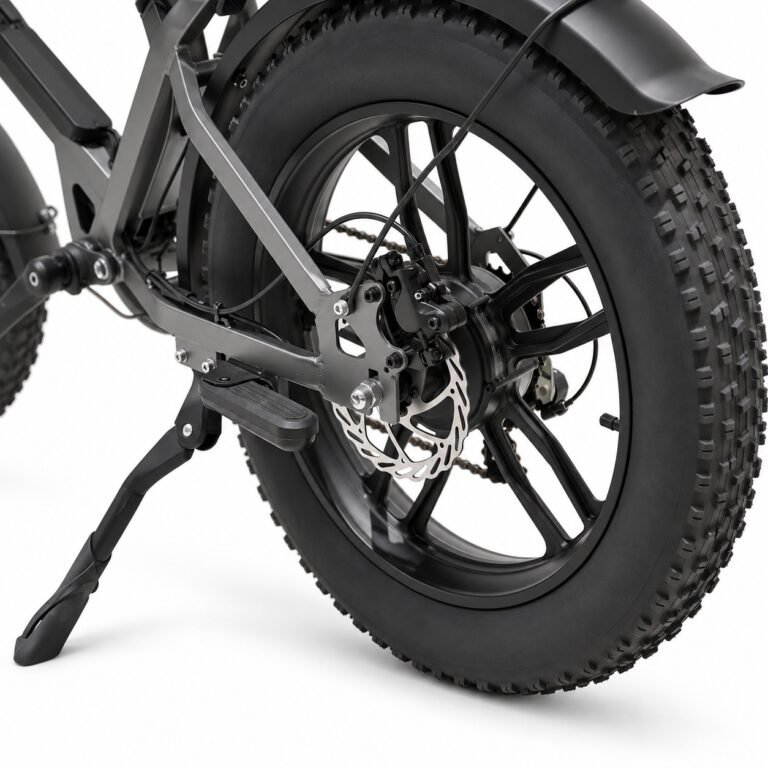

Brake / Braking: ZDR160 aluminum mechanical disc brakes

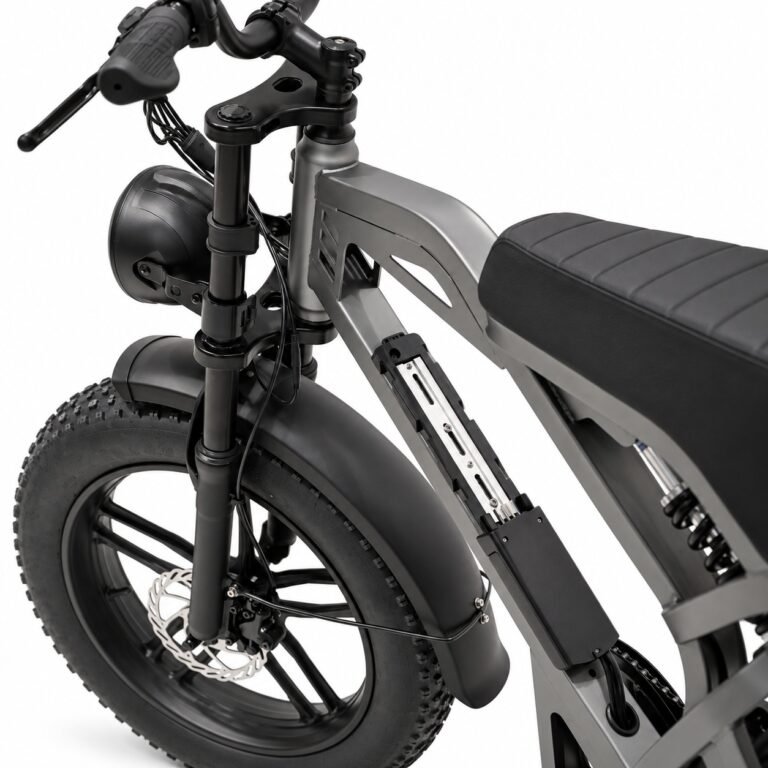

Suspension / Fork: Steel-spring front suspension; Steel-spring rear suspension
Light: LED headlight; LED taillight

DIMENSIONS & LOGISTICS

Size / Dimensions: 1750 × 700 × 1060 mm
Net Weight: 38 kg
Ground Clearance: 290 mm
Rear Axle: //
Wheelbase: 1050 mm
Track Width: //
Container Loading: 180 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model: Iron Parrot
Gross Weight: //
Outer Carton Material: Kraft carton
Inner Color Box Material: //
Outer Carton Dimensions: //
Folded Vehicle Dimensions: //
Seat Height from Ground: 810 mm
Drive Control: Pedal assist and throttle
Motor Rated Voltage: 48 V
Motor Maximum RPM: //
Motor Maximum Output Torque: //
Wheel Construction: Inner tube
Braking Distance: ≤4 m
Transmission: Shimano Tourney RD-TY200 GS; 6/7-speed
Bluetooth: //
Audio System: //
Frame Color: Customizable
Minimum Order Quantity: 100 units

PRODUCT OVERVIEW

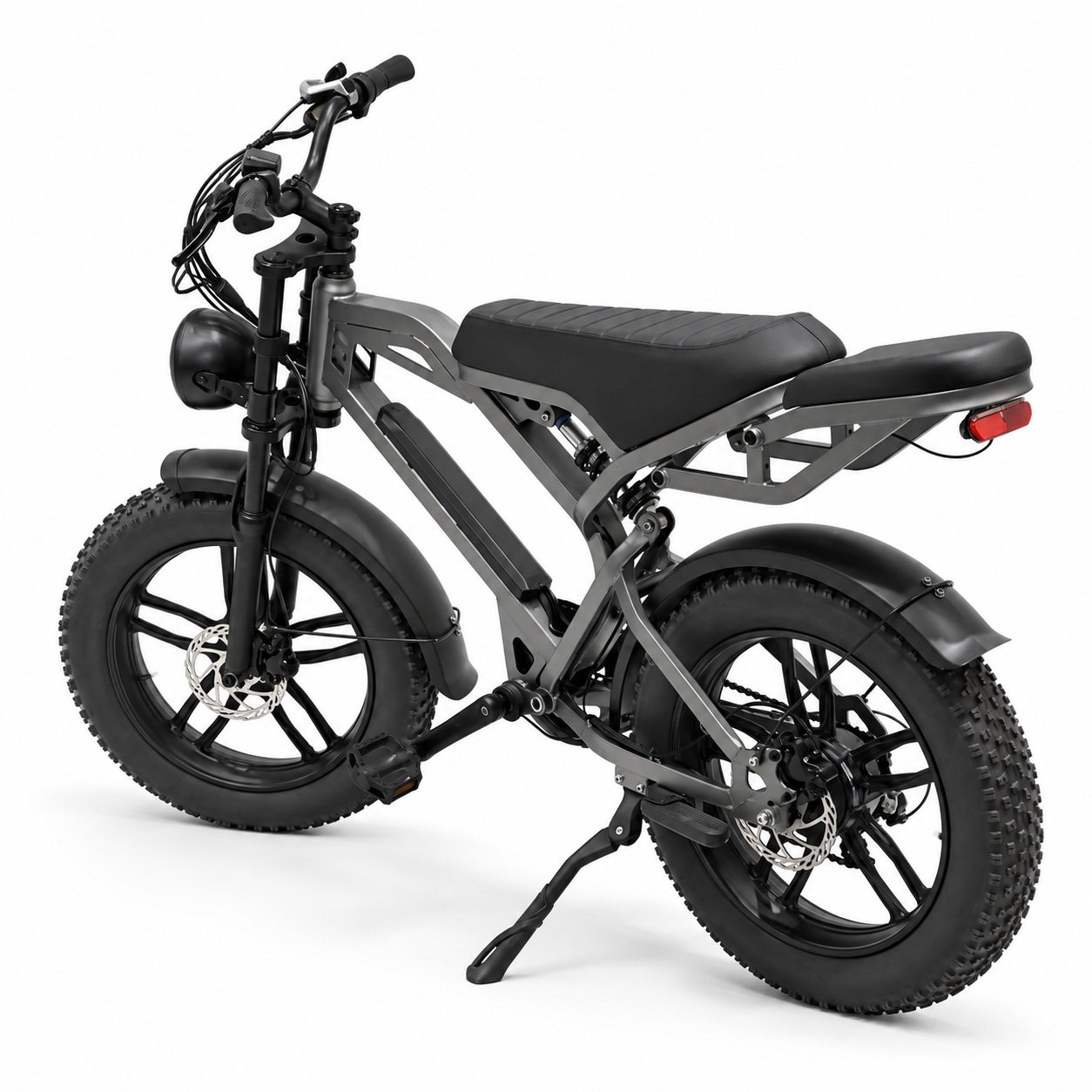

FALCON ZR-CP056

This fat tire electric moped bike features a 500W hub motor, 48V 13Ah lithium battery, 20-inch wide tires, and front and rear spring suspension. It reaches speeds of up to 40 km/h and supports up to 200 kg, making it suitable for commuting, leisure riding, and everyday transportation.

B2B PARTNERSHIP

Configure this model for your market.

Discuss branding, configuration and commercial requirements with the FALCON team.

REQUEST BULK PRICING

FALCON ZR-CP056

Verified model details.

POWER & PERFORMANCE

CHASSIS & COMPONENTS

DIMENSIONS & LOGISTICS

ADDITIONAL VERIFIED DETAILS
