Electric Scooters

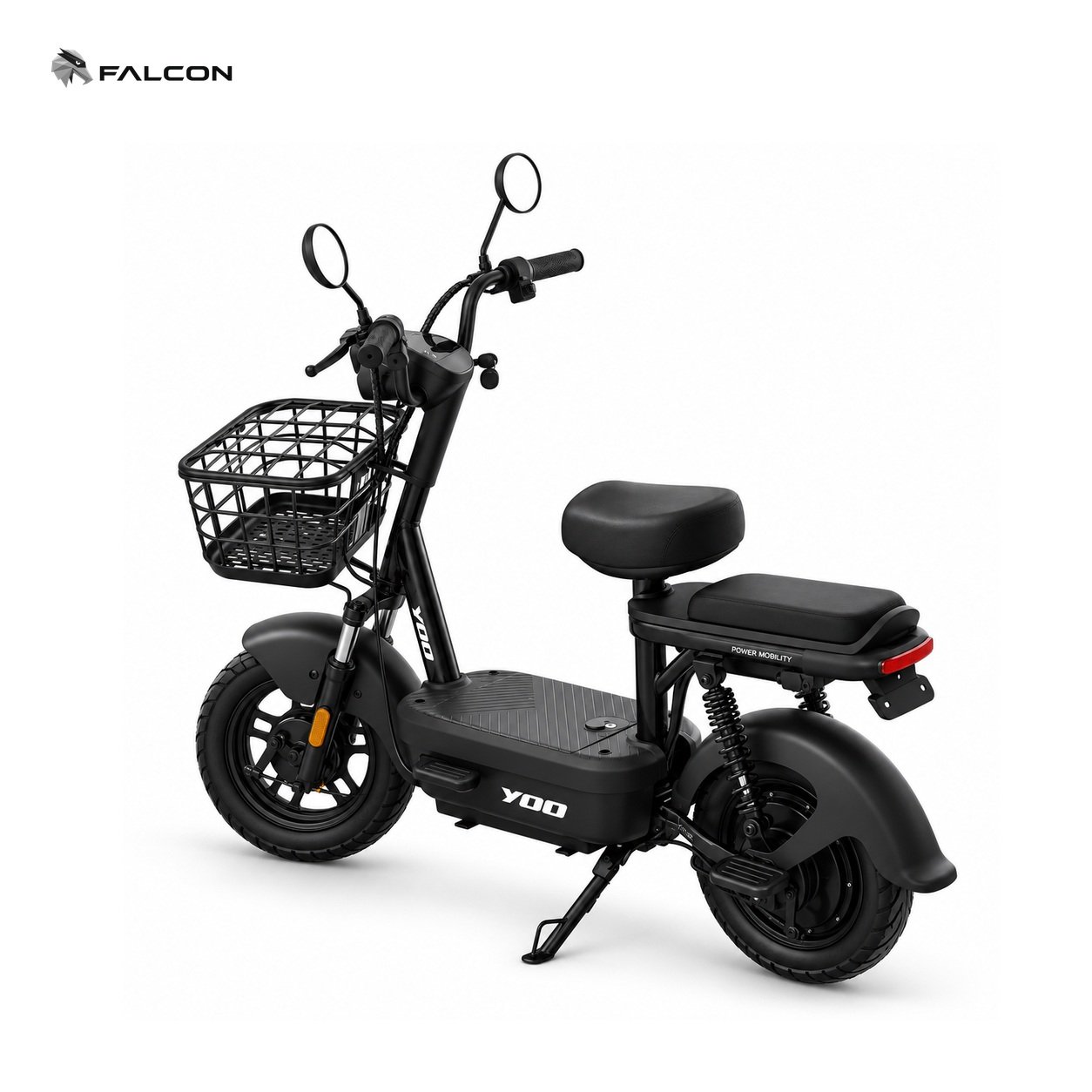

FALCON ZR-CP036

Motor: 350 W rated; 400 W peak; Brushless permanent-magnet motor
Battery: 48 V; 12 Ah; Lead-acid
Maximum Load / Payload: 150 kg
Tire / Wheel: 1230 (supplier size notation); Tubeless

REQUEST A QUOTE OEM / ODM

FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference: ZR-CP036
Motor: 350 W rated; 400 W peak; Brushless permanent-magnet motor
Battery: 48 V; 12 Ah; Lead-acid
Display: LCD display
Climbing Ability: 15°
Maximum Load / Payload: 150 kg
Maximum Speed: 40 km/h
Range / Mileage: 40 km

CHASSIS & COMPONENTS

Frame: Iron

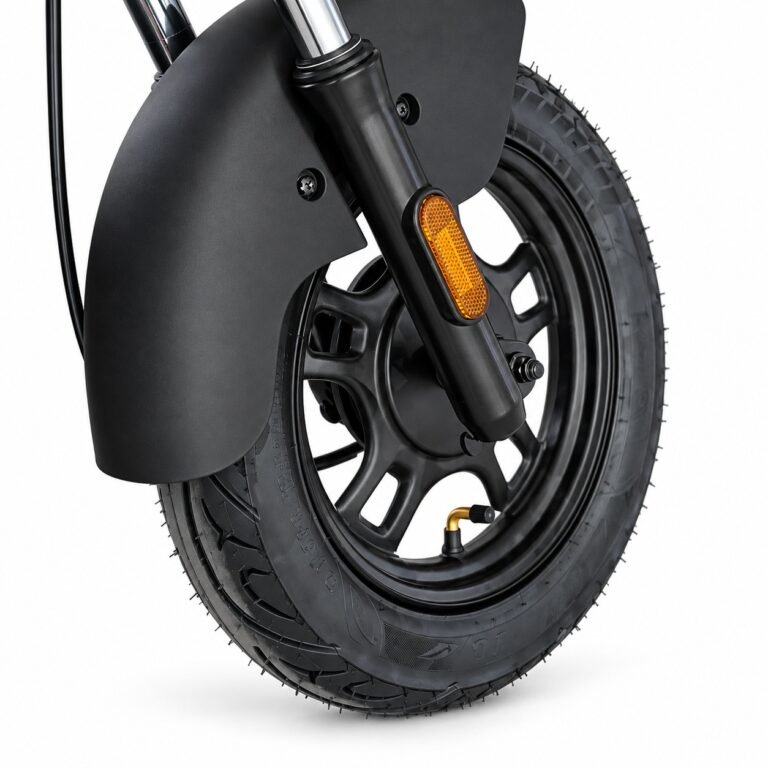

Tire / Wheel: 1230 (supplier size notation); Tubeless
Hub: Iron / aluminum
Brake / Braking: Front and rear drum brakes

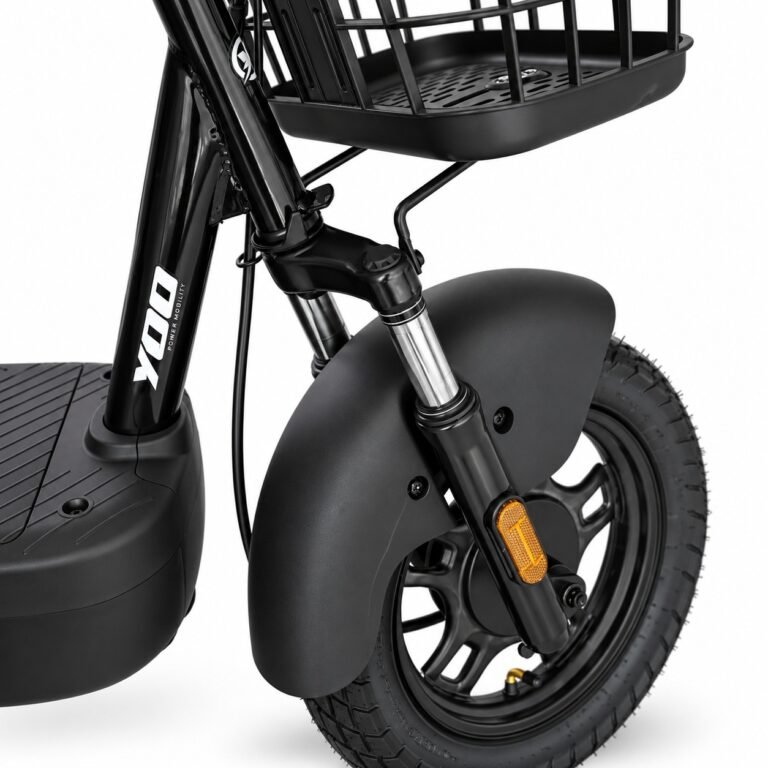

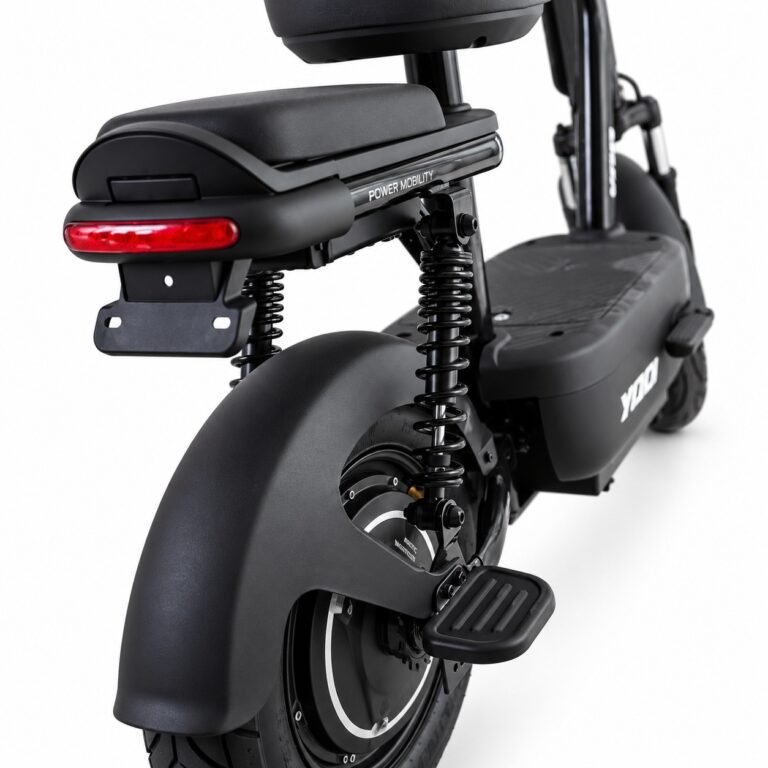

Suspension / Fork: Mechanical front suspension; Mechanical rear suspension

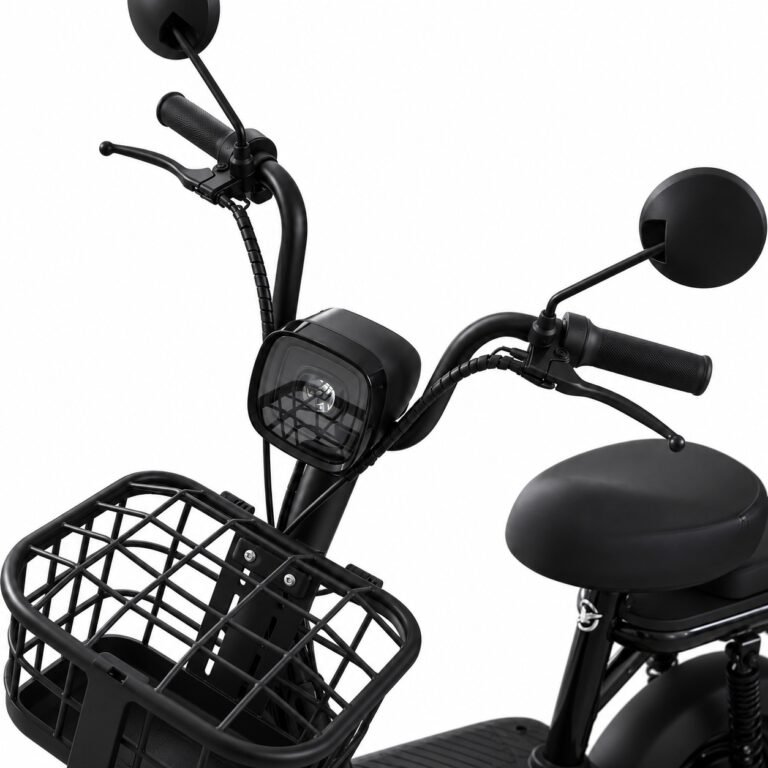

Light: LED headlight; Taillight present; Front and rear turn signals

DIMENSIONS & LOGISTICS

Size / Dimensions: 1480 × 650 × 1050 mm
Net Weight: 34 kg
Ground Clearance: 120 mm
Rear Axle: //
Wheelbase: 1030 mm
Track Width: //
Container Loading: 100 units / 20-ft container; 200 units / 40-ft container; 220 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model: Xiao Keti
Gross Weight: //
Outer Carton Material: 7-ply cardboard carton
Inner Color Box Material: //
Outer Carton Dimensions: 1370 × 300 × 660 mm
Folded Vehicle Dimensions: //
Seat Height from Ground: 730 mm
Drive Control: Full speed
Motor Rated Voltage: 48 V
Motor Maximum RPM: 480 rpm
Motor Maximum Output Torque: 40 (unit unspecified)
Wheel Construction: Tubeless
Braking Distance: 7-15 m
Transmission: //
Bluetooth: No
Audio System: No
Frame Color: Customizable
Minimum Order Quantity: 200 units

B2B PARTNERSHIP

Configure this model for your market.

Discuss branding, configuration and commercial requirements with the FALCON team.

REQUEST BULK PRICING
