Electric Dirt Bikes & Motorcycles

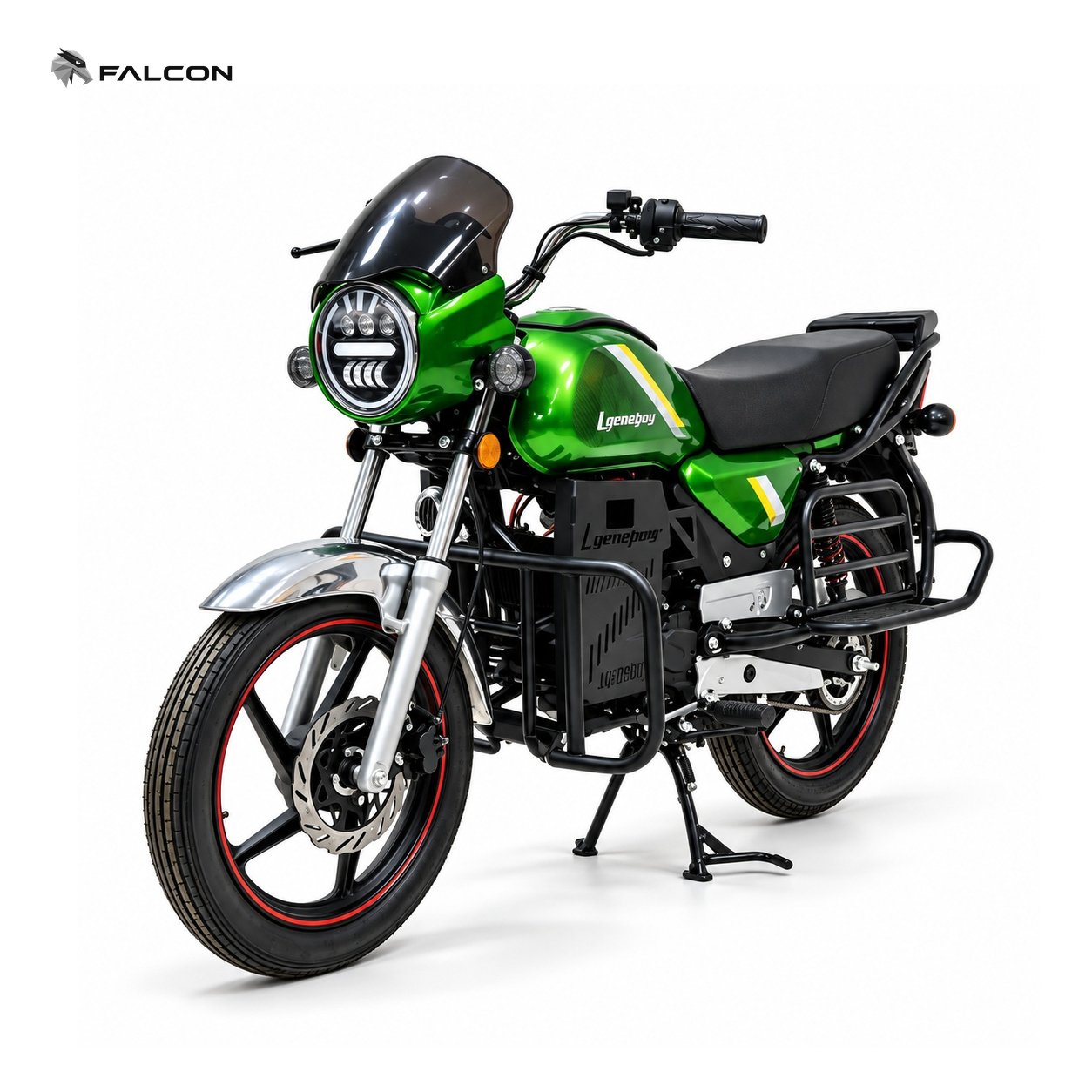

FALCON ZR-CP042

Motor: 4 kW rated; 7 kW peak; 4 kW mid-drive flat-wire geared motor
Battery: 60-72 V; 20-100 Ah; Lead-acid or Li-ion
Maximum Load / Payload: 280 kg
Tire / Wheel: Front five-spoke 1.60 × 18; rear five-spoke 2.15 × 18; 2.75-18 4PR and 90/90-18 57P tube-type tires

REQUEST A QUOTE OEM / ODM

FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference: ZR-CP042
Motor: 4 kW rated; 7 kW peak; 4 kW mid-drive flat-wire geared motor
Battery: 60-72 V; 20-100 Ah; Lead-acid or Li-ion
Display: LED display
Climbing Ability: ≥20°
Maximum Load / Payload: 280 kg
Maximum Speed: 80 km/h
Range / Mileage: 140 km

CHASSIS & COMPONENTS

Frame: High-carbon steel
Tire / Wheel: Front five-spoke 1.60 × 18; rear five-spoke 2.15 × 18; 2.75-18 4PR and 90/90-18 57P tube-type tires
Hub: Aluminum alloy
Brake / Braking: Front disc brake; rear hub brake
Suspension / Fork: Hydraulic front suspension; Mechanical spring rear suspension
Light: LED headlight; LED taillight; LED turn signals

DIMENSIONS & LOGISTICS

Size / Dimensions: 2020 × 780 × 1060 mm
Net Weight: 104 kg
Ground Clearance: //
Rear Axle: //
Wheelbase: 1300 mm
Track Width: //
Container Loading: 105 CKD units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model: XP
Gross Weight: //
Outer Carton Material: Steel shipping frame and kraft carton
Inner Color Box Material: //
Outer Carton Dimensions: //
Folded Vehicle Dimensions: //
Seat Height from Ground: 840 mm
Drive Control: 3 speed settings
Motor Rated Voltage: 72 V
Motor Maximum RPM: 3680 rpm
Motor Maximum Output Torque: 120 N·m
Wheel Construction: 2.75-18 4PR and 90/90-18 57P tube-type tires
Braking Distance: //
Transmission: //
Bluetooth: //
Audio System: //
Frame Color: Customizable
Minimum Order Quantity: //
