Electric Dirt Bikes & Motorcycles

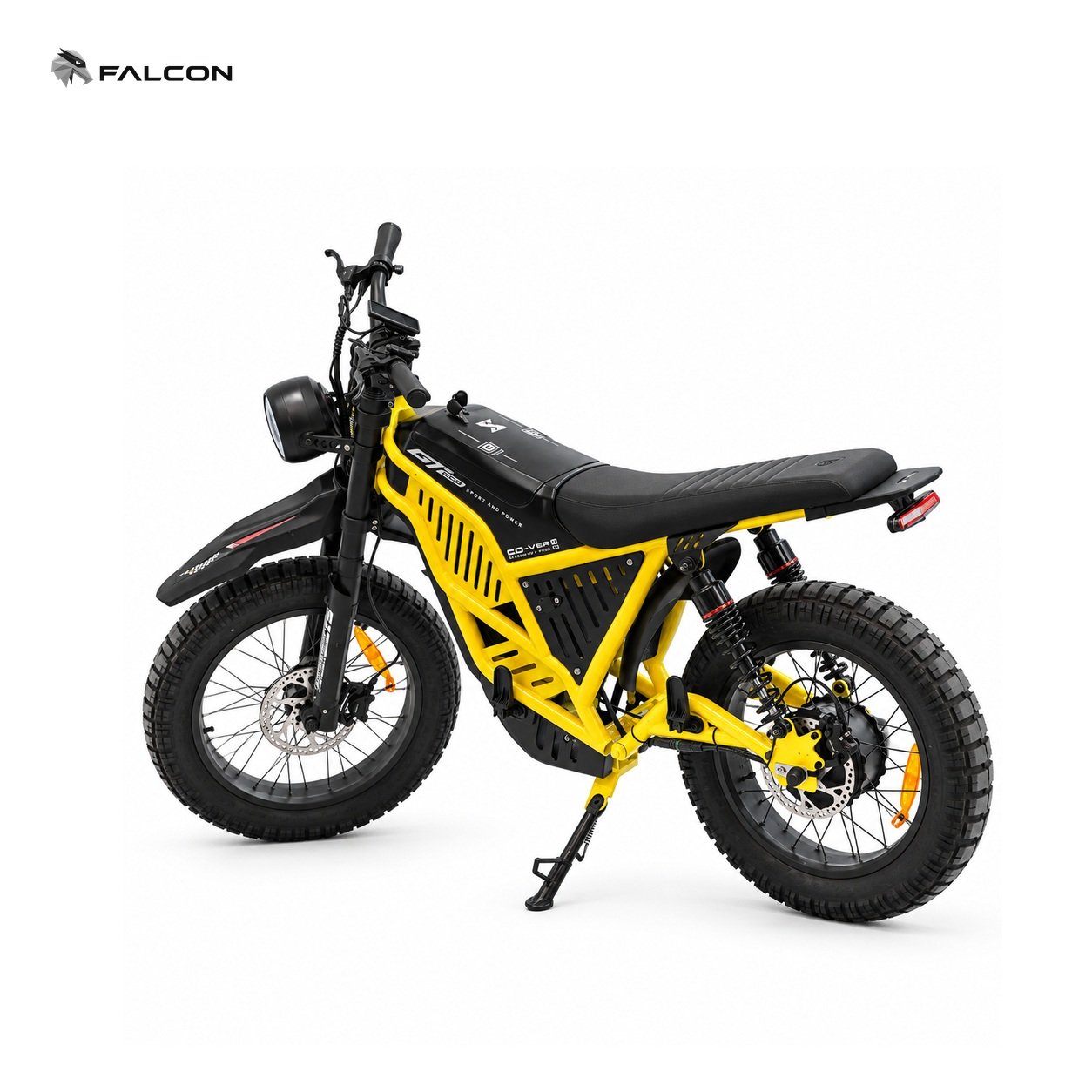

FALCON ZR-CP011

A wide-tire electric scooter platform developed for distributor, fleet and OEM/ODM programs.

Motor
800 W hub motor
Battery
60 V 32 Ah Li-ion
Maximum Load / Payload
300 kg
Tire / Wheel
20-inch wheels / Inner Tube
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP011
Motor
800 W hub motor
Battery
60 V 32 Ah Li-ion
Controller / Sensor
60 V / 30 A

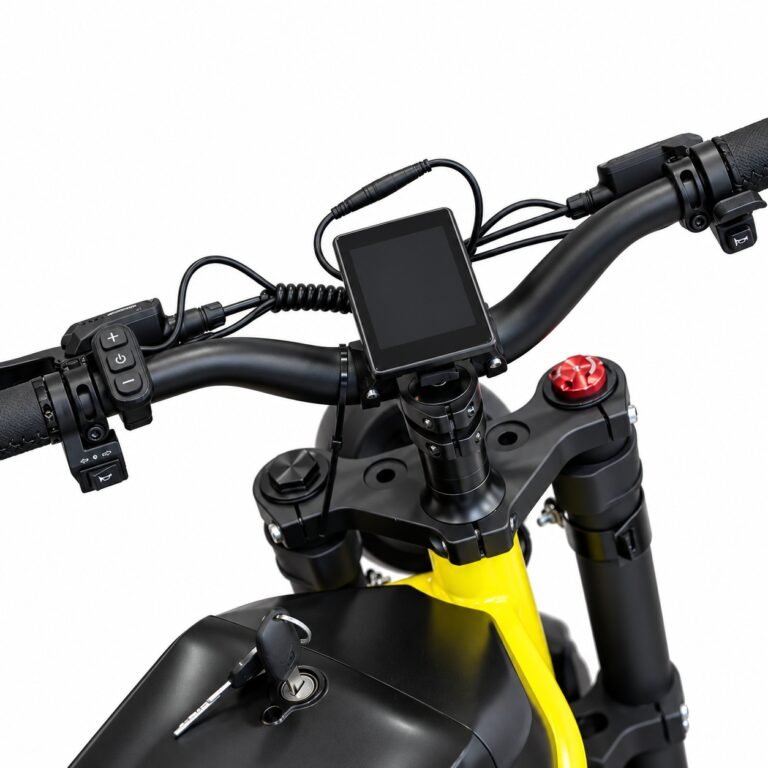

Display
Digital display
Climbing Ability
15°
Maximum Load / Payload
300 kg
Maximum Speed
45 km/h / Shimano 7-Speed
Range / Mileage
60 km

CHASSIS & COMPONENTS

Frame
High Carbon Steel
Tire / Wheel
20-inch wheels / Inner Tube
Hub
Steel wheel construction

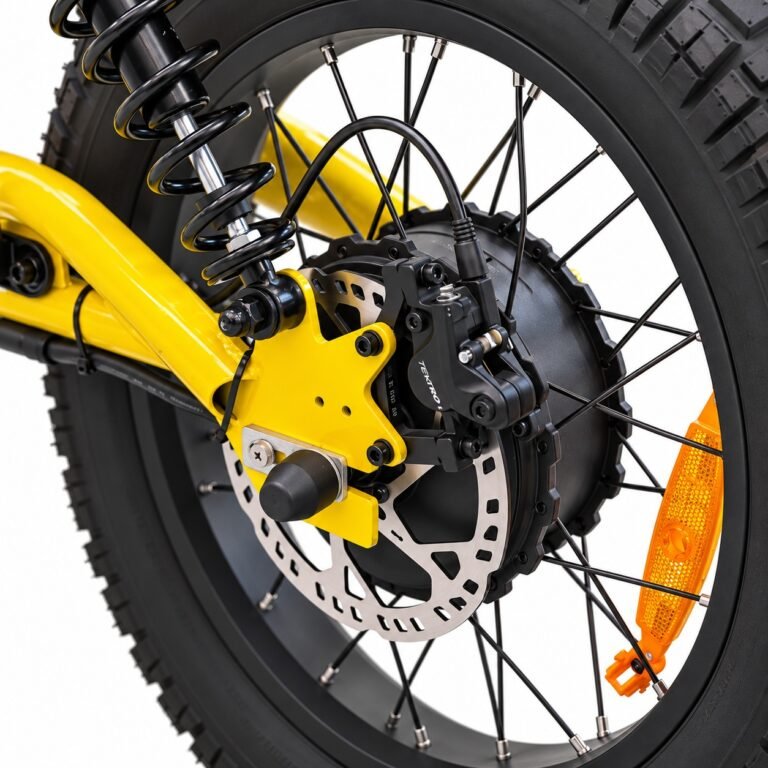

Brake / Braking
Disc Brake; braking distance

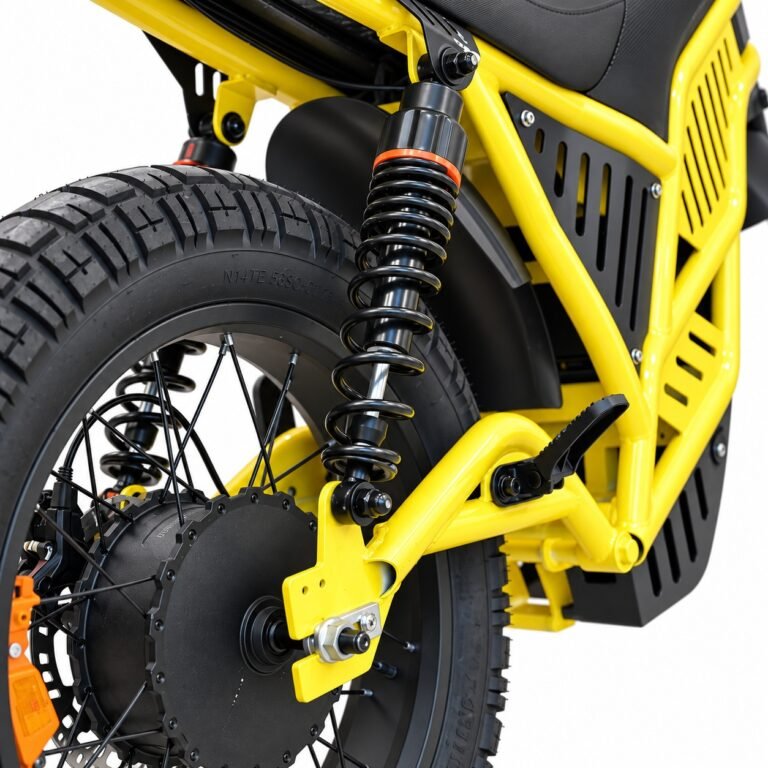

Suspension / Fork
Hydraulic front / spring rear

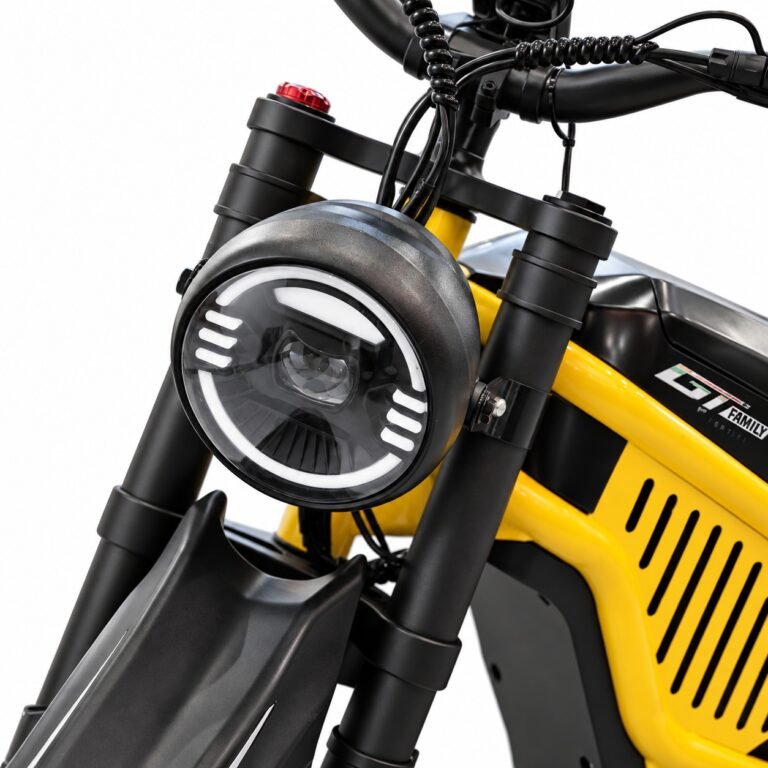

Light
LED headlight; LED taillight; LED turn signals

DIMENSIONS & LOGISTICS

Size / Dimensions
1750 × 730 × 980 mm
Net Weight
38 kg
Ground Clearance
210 mm
Wheelbase
1200 mm
Container Loading
200 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model
ZT-V9
Seat Height from Ground
720 mm
Wheel Construction
Inner Tube
Frame Color
Customization available
Front Suspension
Hydraulic
Rear Suspension
Spring
40-ft High-Cube Container
200 units
Drive Control
Twist throttle; stepless
Transmission
Shimano 7-Speed
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

FALCON ZR-CP011

The FALCON ZR-CP030 combines a high-carbon steel frame, a 1,200 W rated motor, a 60 V 30 Ah lithium battery and configurable frame colors in a practical wide-tire electric platform.
