Fat Tire & Moped E-Bikes

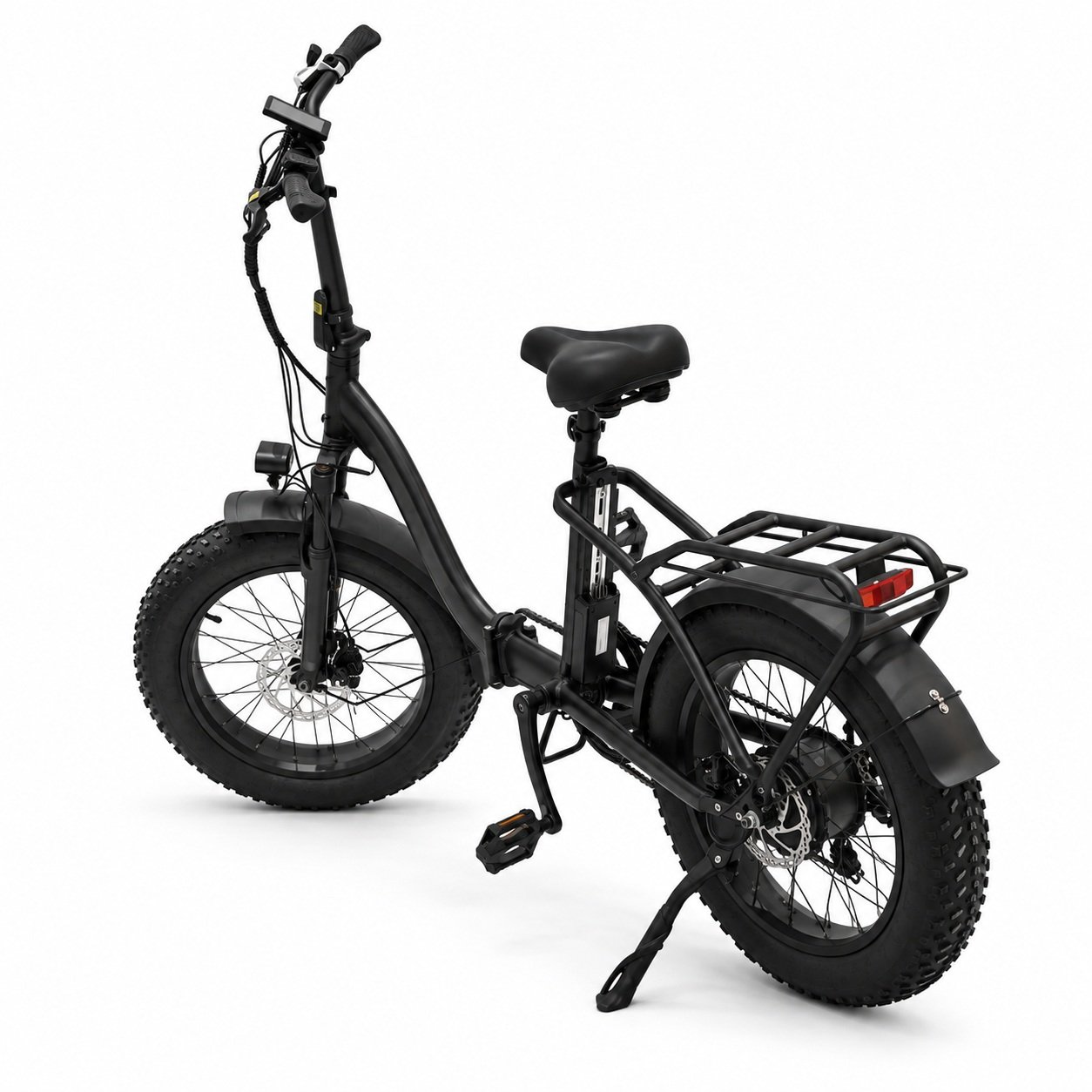

FALCON ZR-CP052

This compact 20-inch fat tire electric bike features a 500W motor, 48V 13Ah lithium battery, 7-speed transmission, front suspension, and mechanical disc brakes. With a top speed of up to 40 km/h and a range of around 40 km, it is designed for comfortable urban and recreational riding.

Motor
500 W rated; XF15FATR 20-inch fat-bike 48 V 500 W motor; threaded freewheel; disc-brake compatible
Battery
48 V 13 Ah Li-ion; 65 × 18650 Dongci 2600 cells
Maximum Load / Payload
150 kg
Tire / Wheel
20 × 4.0 in (100-406); 50 TPI tube-type tires
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP052

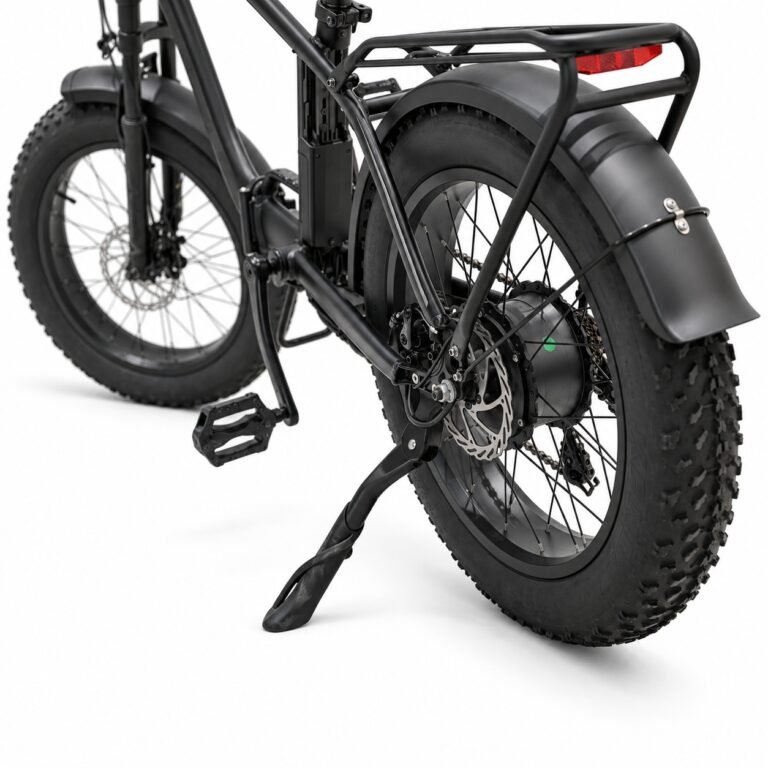

Motor
500 W rated; XF15FATR 20-inch fat-bike 48 V 500 W motor; threaded freewheel; disc-brake compatible

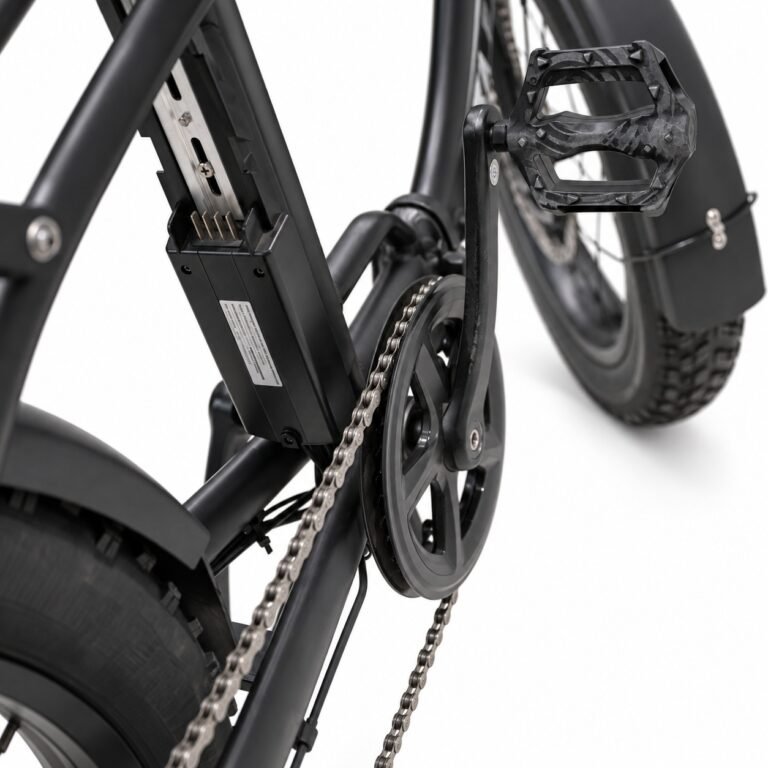

Battery
48 V 13 Ah Li-ion; 65 × 18650 Dongci 2600 cells

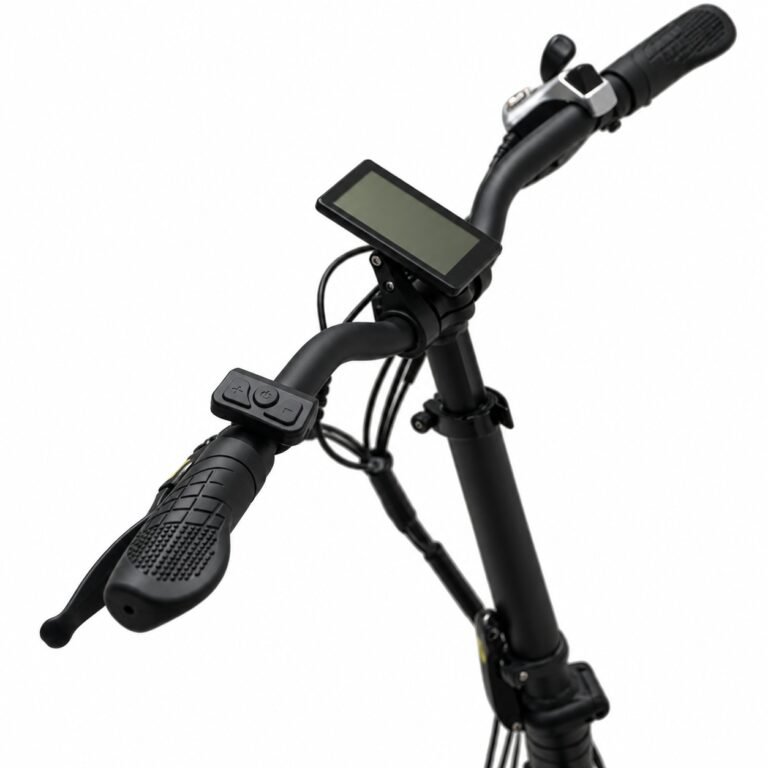

Display
VA display
Climbing Ability
15°
Maximum Load / Payload
150 kg
Maximum Speed
40 km/h
Range / Mileage
40 km

CHASSIS & COMPONENTS

Frame
Aluminum alloy
Tire / Wheel
20 × 4.0 in (100-406); 50 TPI tube-type tires
Hub
20 × 3.5 in fat-bike aluminum rim; 13G × 36H × A/V; 79 mm wide × 19 mm high
Brake / Braking
Aluminum mechanical disc brakes
Suspension / Fork
Aluminum crown; textured matte-black powder coating; 28.6 mm ED-coated steel inner tube
Light
LED headlight; LED taillight

DIMENSIONS & LOGISTICS

Size / Dimensions
1580 × 700 × 1060 mm
Net Weight
24 kg
Ground Clearance
290 mm
Rear Axle
//
Wheelbase
1030 mm
Track Width
//
Container Loading
324 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model
New Parrot Women
Gross Weight
//
Outer Carton Material
Kraft carton
Inner Color Box Material
//
Outer Carton Dimensions
1300 × 250 × 620 mm
Folded Vehicle Dimensions
//
Seat Height from Ground
770 mm
Drive Control
Pedal assist and twist throttle with stepless speed control
Motor Rated Voltage
48 V
Motor Maximum RPM
//
Motor Maximum Output Torque
//
Wheel Construction
Inner tube
Braking Distance
≤4 m

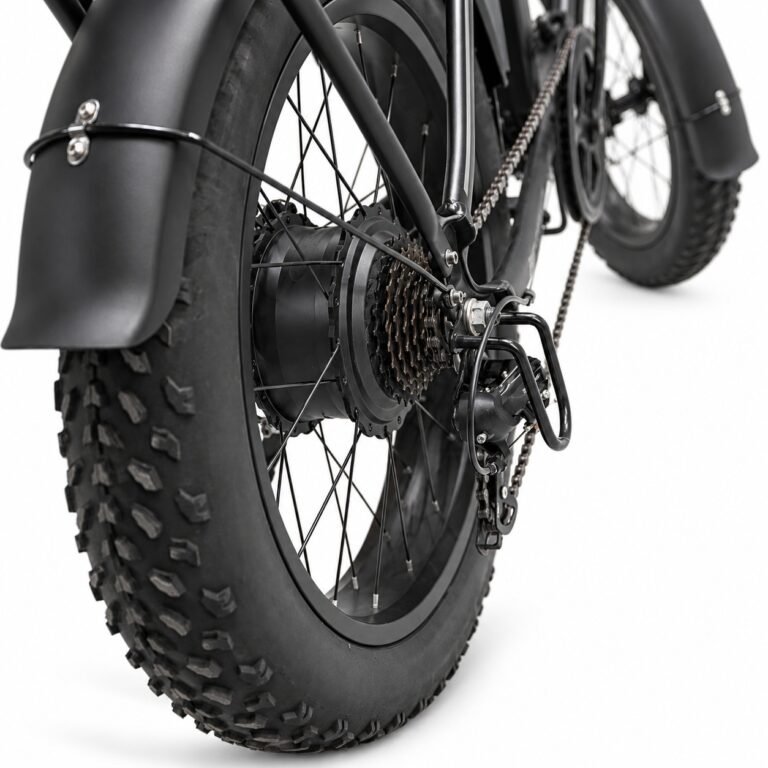

Transmission
7-speed; 14T-28T
Bluetooth
//
Audio System
//
Frame Color
Customizable
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

FALCON ZR-CP052

This compact 20-inch fat tire electric bike features a 500W motor, 48V 13Ah lithium battery, 7-speed transmission, front suspension, and mechanical disc brakes. With a top speed of up to 40 km/h and a range of around 40 km, it is designed for comfortable urban and recreational riding.

RELATED MODELS

Explore more FALCON platforms.

3-Wheel Electric Scooter for Adults with Front Basket & Rear Cargo Rack-ZR-CP040

Electric Dirt Bikes & Motorcycles

3-Wheel Electric Scooter for Adults with Front Basket & Rear Cargo Rack-ZR-CP040

Motor
1,000 W rated; 1,500 W peak; Brushless permanent-magnet motor
Battery
60 V; 20 Ah; Lead-acid
VIEW MODEL
500W 20-Inch Fat Tire Electric Cargo Bike with 48V 13Ah Battery & 150 kg Load-ZR-CP053

City & Commuter E-Bikes

500W 20-Inch Fat Tire Electric Cargo Bike with 48V 13Ah Battery & 150 kg Load-ZR-CP053

Motor
500 W rated; 20-inch fat-bike 48 V 500 W motor; magnesium-alloy construction; wheel diameter counted as 23 inches
Battery
48 V 13 Ah Li-ion; customer-supplied casing; for 48 V 500 W motor; 25 A current limit; 13S5P; 65 × 18650 Dongci 2600 cells
VIEW MODEL

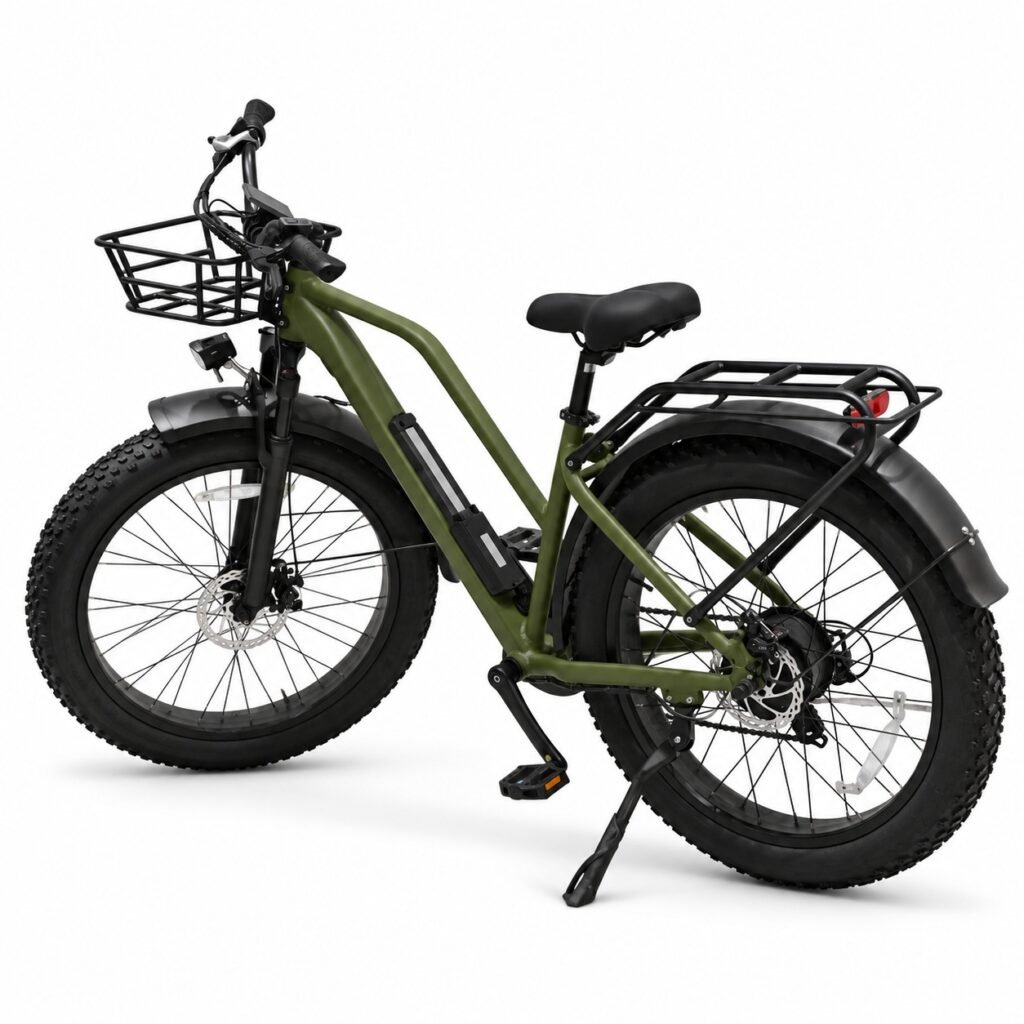

500W 26-Inch Fat Tire Electric Bike with 48V 13Ah Battery & 200 kg Load Capacity-ZR-CP051
