Fat Tire & Moped E-Bikes

FALCON ZR-CP051

This 26-inch fat tire electric bike combines a lightwei […]

Motor
500 W rated; 26-inch fat-bike 48 V 500 W motor; threaded freewheel; disc-brake compatible
Battery
48 V 13 Ah Li-ion; 65 × 18650 Dongci 2600 cells
Maximum Load / Payload
200 kg
Tire / Wheel
26 × 4.0 in (100-559); 50 TPI; 26 × 3.5/4.0 in butyl-rubber tube-type tires
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP051
Motor
500 W rated; 26-inch fat-bike 48 V 500 W motor; threaded freewheel; disc-brake compatible
Battery
48 V 13 Ah Li-ion; 65 × 18650 Dongci 2600 cells
Display
VA display
Climbing Ability
15°
Maximum Load / Payload
200 kg
Maximum Speed
40 km/h
Range / Mileage
50 km

CHASSIS & COMPONENTS

Frame
Aluminum alloy
Tire / Wheel
26 × 4.0 in (100-559); 50 TPI; 26 × 3.5/4.0 in butyl-rubber tube-type tires
Hub
26 × 3.5 in fat-bike aluminum rim; 13G × 36H × A/V
Brake / Braking
ZDR160 aluminum mechanical disc brakes
Suspension / Fork
Aluminum crown; textured matte-black powder coating; adjustable with mechanical lockout
Light
LED headlight; LED taillight

DIMENSIONS & LOGISTICS

Size / Dimensions
1730 × 690 × 1040 mm
Net Weight
25 kg
Ground Clearance
270 mm
Rear Axle
//
Wheelbase
1020 mm
Track Width
//
Container Loading
200 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model
New Parrot Men
Gross Weight
//
Outer Carton Material
Kraft carton
Inner Color Box Material
//
Outer Carton Dimensions
1500 × 290 × 800 mm
Folded Vehicle Dimensions
//
Seat Height from Ground
750 mm
Drive Control
Pedal assist and twist throttle with stepless speed control
Motor Rated Voltage
48 V
Motor Maximum RPM
//
Motor Maximum Output Torque
//
Wheel Construction
Inner tube
Braking Distance
≤4 m
Transmission
Shimano Tourney RD-TY300; 6/7-speed
Bluetooth
//
Audio System
//
Frame Color
Customizable
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

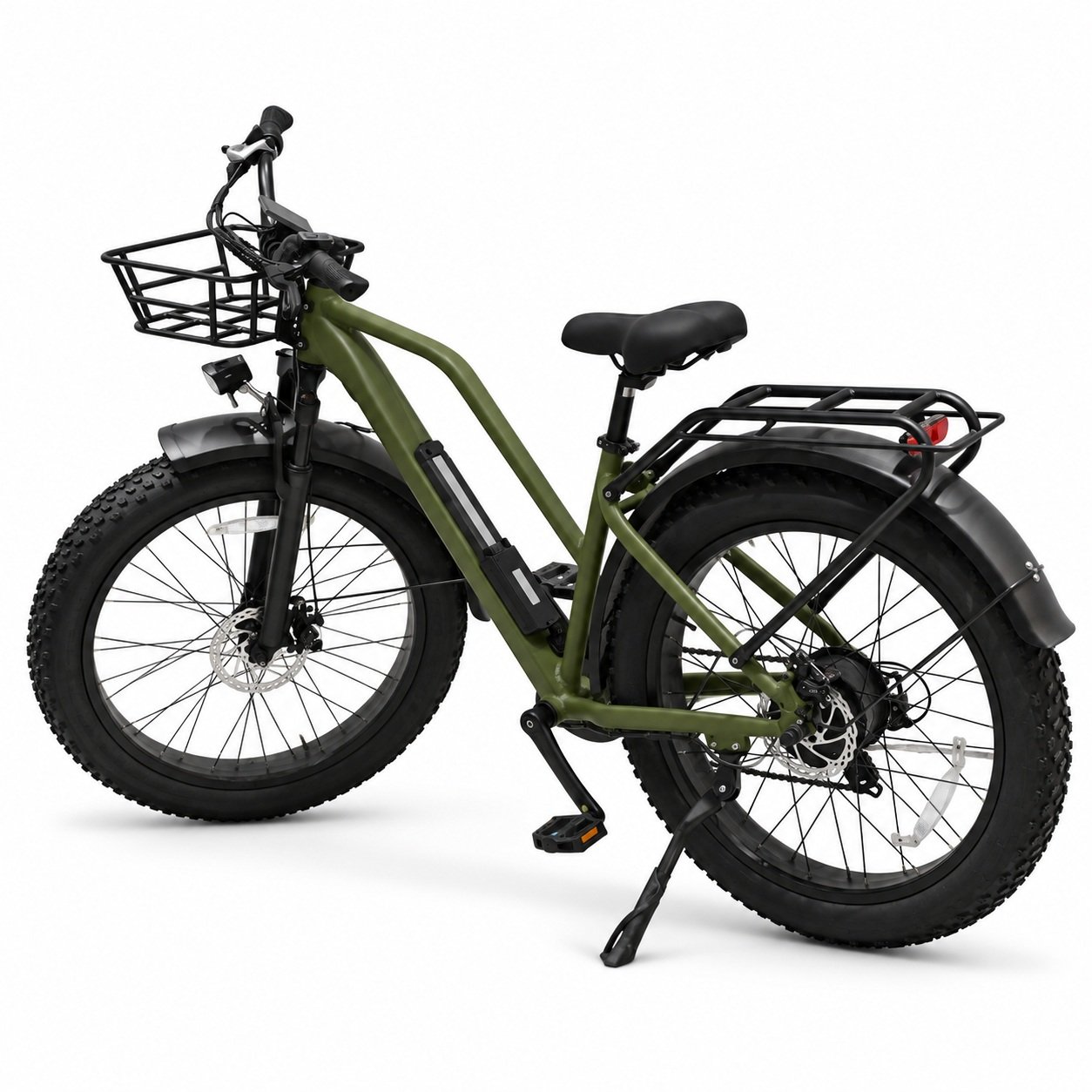

FALCON ZR-CP051

This 26-inch fat tire electric bike combines a lightweight aluminum alloy frame with a 500W motor and 48V 13Ah lithium battery. It offers speeds of up to 40 km/h, approximately 50 km of riding range, front suspension, disc brakes, and a maximum load capacity of 200 kg.
