Fat Tire & Moped E-Bikes

FALCON ZR-CP058

This 26-inch fat tire electric bike is powered by a 750 […]

Motor
750 W rated; 26-inch fat-bike 48 V 750 W motor
Battery
48 V 15 Ah Li-ion; 30 A current limit; 13S3P; 39 × 21700 Lishen 5000 cells
Maximum Load / Payload
180 kg
Tire / Wheel
26-inch wheels; 26 × 4.0 in butyl-rubber tube-type tires
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP058
Motor
750 W rated; 26-inch fat-bike 48 V 750 W motor
Battery
48 V 15 Ah Li-ion; 30 A current limit; 13S3P; 39 × 21700 Lishen 5000 cells
Display
VA display
Climbing Ability
15°
Maximum Load / Payload
180 kg
Maximum Speed
45 km/h
Range / Mileage
50 km

CHASSIS & COMPONENTS

Frame
Aluminum alloy
Tire / Wheel
26-inch wheels; 26 × 4.0 in butyl-rubber tube-type tires
Hub
26 × 3.5 in double-wall aluminum rim
Brake / Braking
Hydraulic disc brakes with motor cut-off
Suspension / Fork
Black aluminum crown; 32 mm ED-coated steel inner tube
Light
LED headlight

DIMENSIONS & LOGISTICS

Size / Dimensions
1790 × 700 × 1060 mm
Net Weight
37 kg
Ground Clearance
280 mm
Rear Axle
//
Wheelbase
1050 mm
Track Width
//
Container Loading
180 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model
Explorer Women B
Gross Weight
//
Outer Carton Material
Kraft carton
Inner Color Box Material
//
Outer Carton Dimensions
1550 × 280 × 810 mm
Folded Vehicle Dimensions
//
Seat Height from Ground
760 mm
Drive Control
Thumb throttle
Motor Rated Voltage
48 V
Motor Maximum RPM
//
Motor Maximum Output Torque
//
Wheel Construction
Inner tube
Braking Distance
≤4 m
Transmission
Shimano Altus RD-M310-L; 7/8-speed
Bluetooth
//
Audio System
//
Frame Color
Customizable
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

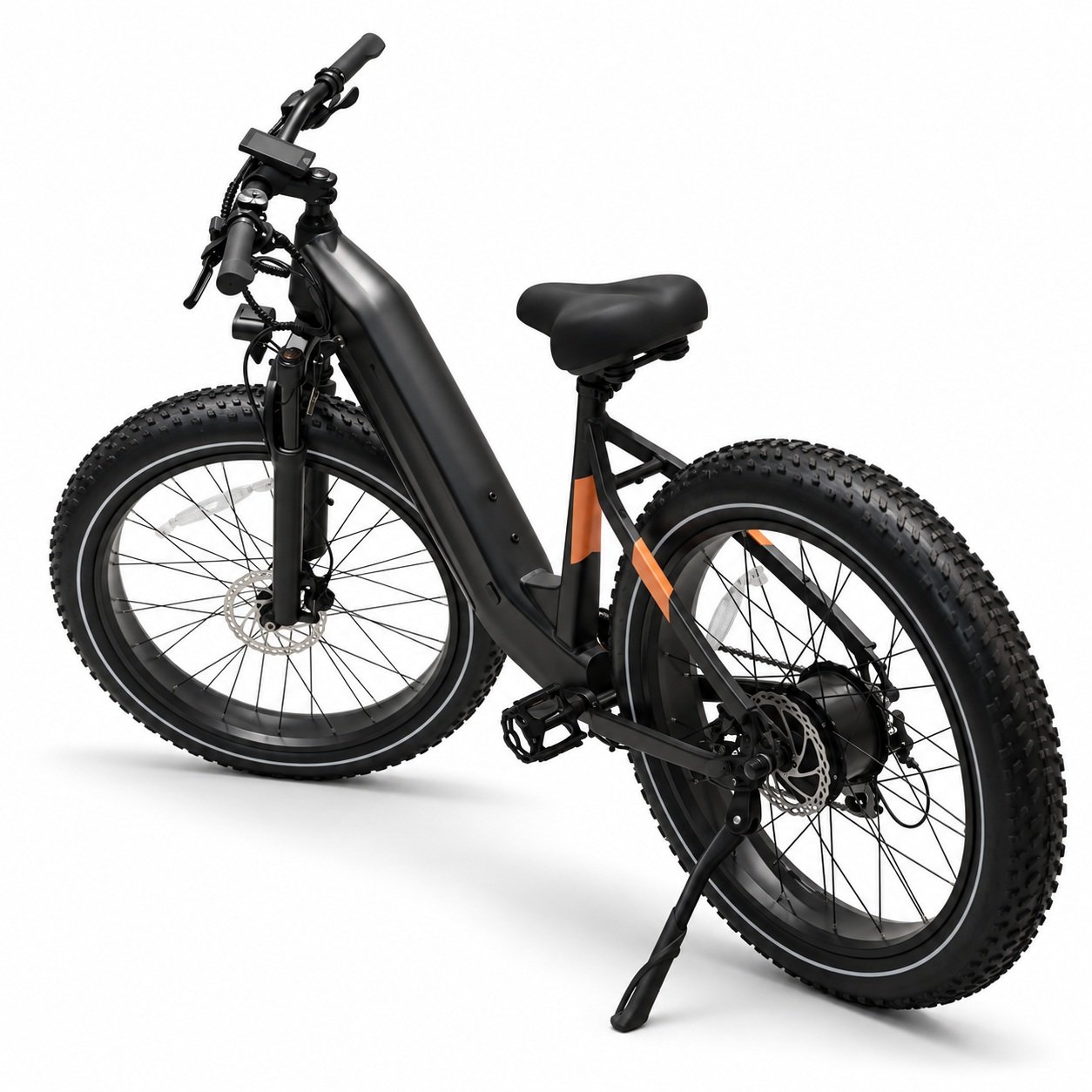

FALCON ZR-CP058

This 26-inch fat tire electric bike is powered by a 750W motor and 48V 15Ah lithium battery. It features an aluminum alloy frame, hydraulic disc brakes, front suspension, and an 8-speed drivetrain. With speeds of up to 45 km/h and around 50 km of range, it is built for versatile urban and recreational riding.
