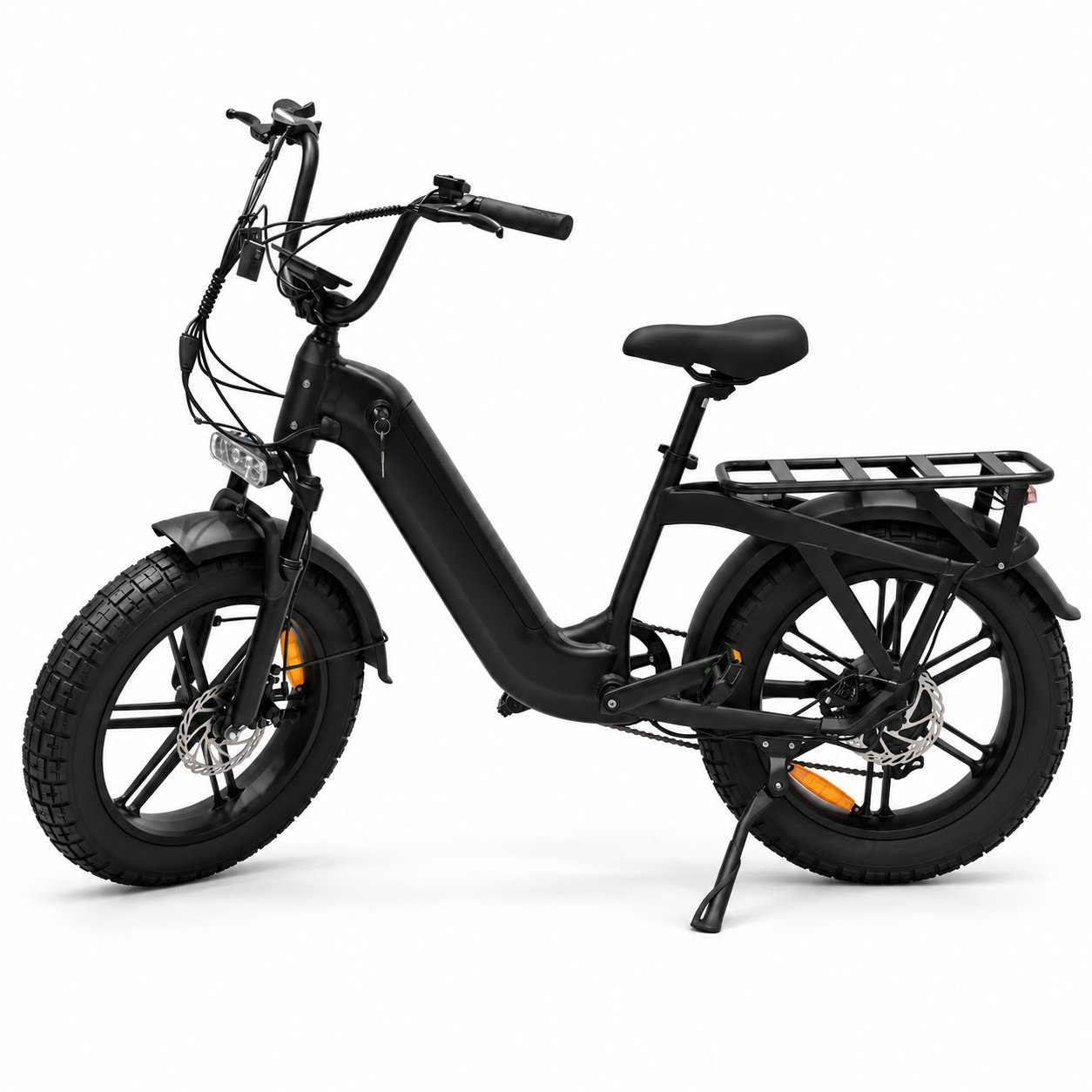

Fat Tire & Moped E-Bikes

FALCON ZR-CP050

This 750W fat tire electric bike features a 48V 15Ah li […]

Motor
750 W rated; 20-inch fat-bike 48 V 750 W integrated magnesium-alloy hub motor (marked 250 W)
Battery
48 V 15 Ah Li-ion; 30 A current limit; 13S3P; 21700 Lishen 5000 cells
Maximum Load / Payload
160 kg
Tire / Wheel
20 × 4.0 in (100-406); 60 TPI; 20 × 3.5/4.0 in butyl-rubber tube-type tires
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP050
Motor
750 W rated; 20-inch fat-bike 48 V 750 W integrated magnesium-alloy hub motor (marked 250 W)
Battery
48 V 15 Ah Li-ion; 30 A current limit; 13S3P; 21700 Lishen 5000 cells
Display
VA display
Climbing Ability
15°
Maximum Load / Payload
160 kg
Maximum Speed
40 km/h
Range / Mileage
50 km

CHASSIS & COMPONENTS

Frame
High-carbon steel
Tire / Wheel
20 × 4.0 in (100-406); 60 TPI; 20 × 3.5/4.0 in butyl-rubber tube-type tires
Hub
20-inch fat-bike six-blade integrated magnesium-alloy wheel
Brake / Braking
ZDR160 aluminum mechanical disc brakes
Suspension / Fork
20-inch fat-bike suspension fork; aluminum crown; textured matte-black powder coating
Light
LED headlight; LED taillight

DIMENSIONS & LOGISTICS

Size / Dimensions
1710 × 690 × 1060 mm
Net Weight
32 kg
Ground Clearance
290 mm
Rear Axle
//
Wheelbase
1040 mm
Track Width
//
Container Loading
200 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model
Panghu
Gross Weight
//
Outer Carton Material
Kraft carton
Inner Color Box Material
//
Outer Carton Dimensions
1440 × 290 × 760 mm
Folded Vehicle Dimensions
//
Seat Height from Ground
780 mm
Drive Control
Pedal assist and twist throttle with stepless speed control
Motor Rated Voltage
48 V
Motor Maximum RPM
//
Motor Maximum Output Torque
//
Wheel Construction
Inner tube
Braking Distance
≤4 m
Transmission
Shimano Tourney RD-TY300; 6/7-speed
Bluetooth
//
Audio System
//
Frame Color
Customizable
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

FALCON ZR-CP050

This 750W fat tire electric bike features a 48V 15Ah lithium battery, 20-inch wide tires, front suspension, and mechanical disc brakes. With a top speed of up to 40 km/h, a range of around 50 km, and a 160 kg load capacity, it is suitable for commuting, leisure riding, and light off-road use.
