City & Commuter E-Bikes

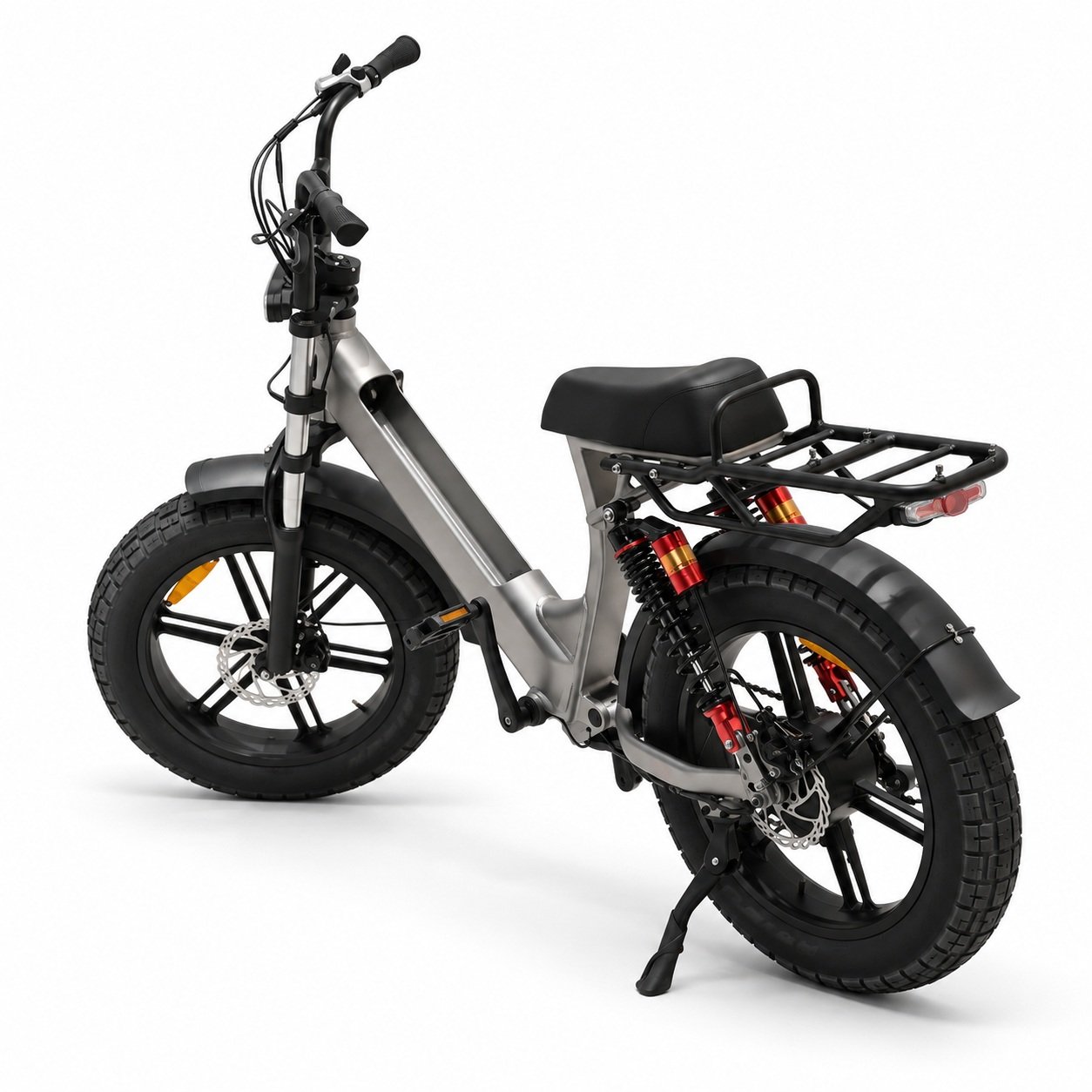

FALCON ZR-CP055

This high-performance fat tire electric bike features a […]

Motor: 750 W rated; 20-inch fat-bike 48 V 750 W motor
Battery: 48 V 15 Ah Li-ion; 30 A current limit; 13S3P; 39 × 21700 Lishen 5000 cells
Maximum Load / Payload: 200 kg
Tire / Wheel: 20 × 4.0 in (100-406); 60 TPI; 20 × 4.0 in butyl-rubber tube-type tires

REQUEST A QUOTE OEM / ODM

FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference: ZR-CP055
Motor: 750 W rated; 20-inch fat-bike 48 V 750 W motor
Battery: 48 V 15 Ah Li-ion; 30 A current limit; 13S3P; 39 × 21700 Lishen 5000 cells
Display: VA display
Climbing Ability: 15°
Maximum Load / Payload: 200 kg
Maximum Speed: 45 km/h
Range / Mileage: 50 km

CHASSIS & COMPONENTS

Frame: Aluminum alloy
Tire / Wheel: 20 × 4.0 in (100-406); 60 TPI; 20 × 4.0 in butyl-rubber tube-type tires
Hub: 20-inch fat-bike magnesium-alloy wheel
Brake / Braking: ZDR160 aluminum mechanical disc brakes
Suspension / Fork: Matte-black aluminum dual-crown fork; 34 mm ED-coated steel inner tube; Spring rear suspension
Light: LED headlight; LED taillight

DIMENSIONS & LOGISTICS

Size / Dimensions: 1900 × 700 × 1080 mm
Net Weight: 29 kg
Ground Clearance: 300 mm
Rear Axle: //
Wheelbase: 1080 mm
Track Width: //
Container Loading: 140 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model: Grizzly Bear
Gross Weight: //
Outer Carton Material: Kraft carton
Inner Color Box Material: //
Outer Carton Dimensions: 1710 × 280 × 980 mm
Folded Vehicle Dimensions: //
Seat Height from Ground: 750 mm
Drive Control: Pedal assist and twist throttle
Motor Rated Voltage: 48 V
Motor Maximum RPM: //
Motor Maximum Output Torque: //
Wheel Construction: Inner tube
Braking Distance: ≤4 m
Transmission: Shimano Tourney RD-TY300; 6/7-speed
Bluetooth: //
Audio System: //
Frame Color: Customizable
Minimum Order Quantity: 100 units

PRODUCT OVERVIEW

FALCON ZR-CP055

This high-performance fat tire electric bike features a 750W motor, 48V 15Ah lithium battery, 20-inch wide tires, and front and rear suspension for improved riding comfort. With a maximum speed of 45 km/h and a 200 kg load capacity, it is suitable for city riding and light off-road terrain.

B2B PARTNERSHIP

Configure this model for your market.

Discuss branding, configuration and commercial requirements with the FALCON team.

REQUEST BULK PRICING

FALCON ZR-CP055

Verified model details.

POWER & PERFORMANCE

CHASSIS & COMPONENTS

DIMENSIONS & LOGISTICS

ADDITIONAL VERIFIED DETAILS

FALCON ZR-CP055

Explore more FALCON platforms.

26-Inch 350W Electric Bike with 48V 10.4Ah Battery & Shimano 7-Speed-ZR-CP017

26-Inch Electric Mountain Bike – 350W Lithium Battery E-Bike-ZR-CP016

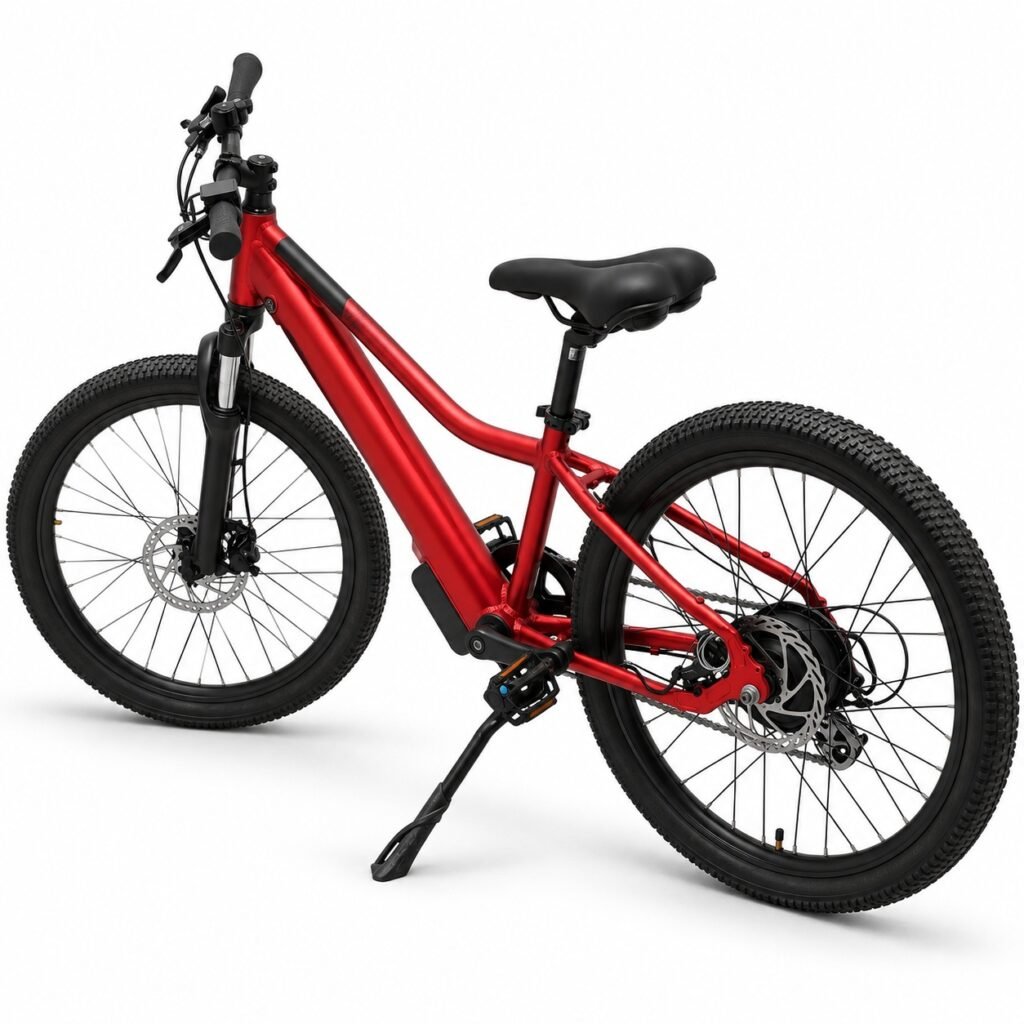

350W Lightweight Electric Commuter Bike with 36V 10.4Ah Lithium Battery & Disc Brakes-ZR-CP060
