Fat Tire & Moped E-Bikes

FALCON ZR-CP059

This premium fat tire electric mountain bike features a […]

Motor
750 W rated; M620 mid-drive motor
Battery
48 V 20 Ah Li-ion; for 26-inch 48 V 750 W motor; 23 A current limit; 13S4P; 52 × 21700 Samsung 5000 cells
Maximum Load / Payload
200 kg
Tire / Wheel
26-inch wheels; 26 × 4.0 in butyl-rubber tube-type tires
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP059
Motor
750 W rated; M620 mid-drive motor
Battery
48 V 20 Ah Li-ion; for 26-inch 48 V 750 W motor; 23 A current limit; 13S4P; 52 × 21700 Samsung 5000 cells

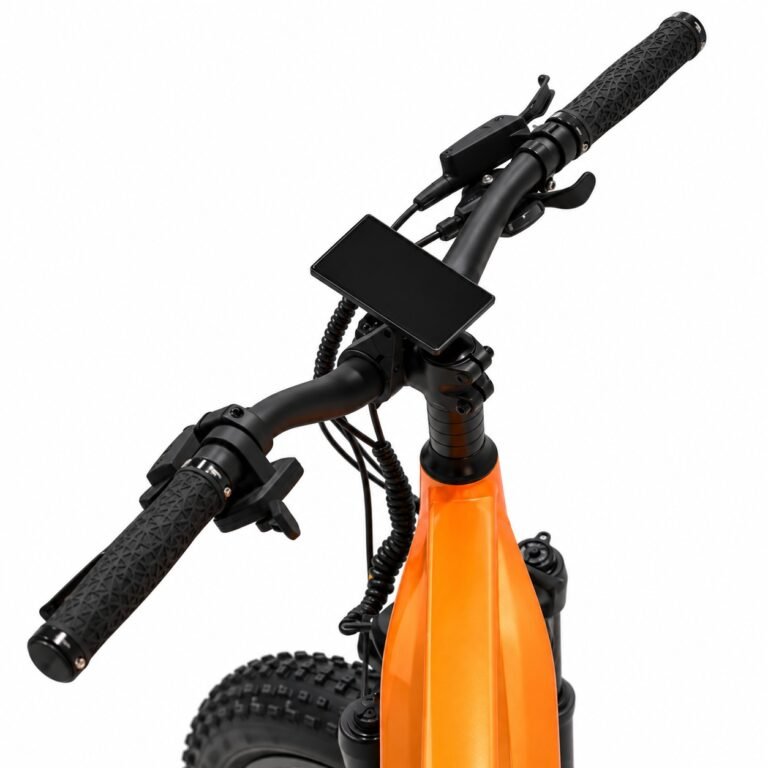

Display
VA display
Climbing Ability
15°
Maximum Load / Payload
200 kg
Maximum Speed
45 km/h
Range / Mileage
60 km

CHASSIS & COMPONENTS

Frame
Aluminum alloy
Tire / Wheel
26-inch wheels; 26 × 4.0 in butyl-rubber tube-type tires
Hub
Double-wall aluminum rim
Brake / Braking
Hydraulic disc brakes
Suspension / Fork
Black aluminum crown; 32 mm CP inner tube; adjustable with lockout; KS-562R air rear shock
Light
LED headlight

DIMENSIONS & LOGISTICS

Size / Dimensions
1970 × 700 × 1080 mm
Net Weight
35 kg
Ground Clearance
330 mm
Rear Axle
//
Wheelbase
1120 mm
Track Width
//
Container Loading
180 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model
Fat-Tire Tank
Gross Weight
//
Outer Carton Material
Kraft carton
Inner Color Box Material
//
Outer Carton Dimensions
//
Folded Vehicle Dimensions
//
Seat Height from Ground
820 mm
Drive Control
Pedal assist and thumb throttle
Motor Rated Voltage
48 V
Motor Maximum RPM
//
Motor Maximum Output Torque
//
Wheel Construction
Inner tube
Braking Distance
≤4 m
Transmission
Shimano Deore SGS long cage; 10/11-speed
Bluetooth
//
Audio System
//
Frame Color
Customizable
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

FALCON ZR-CP059

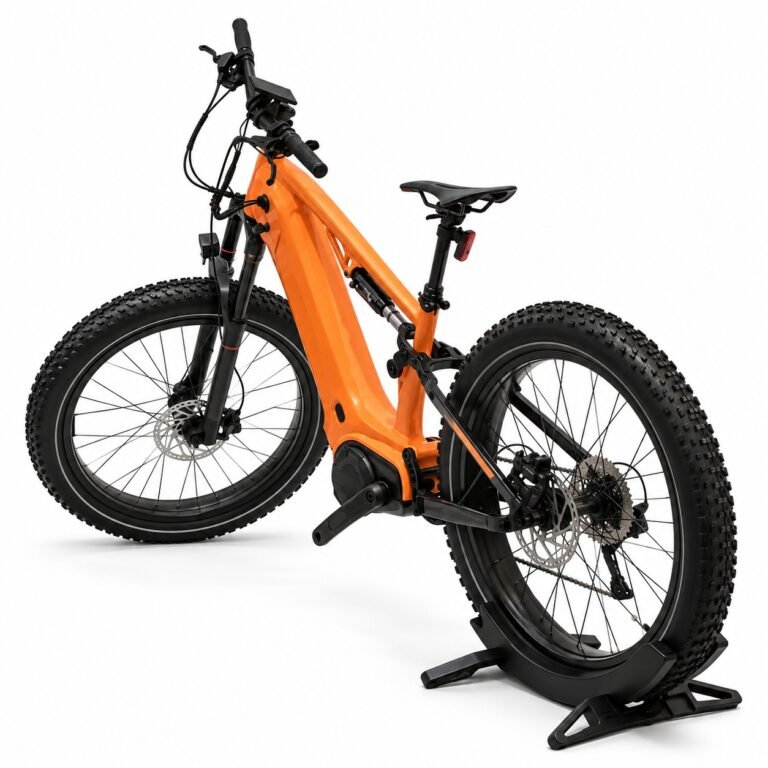

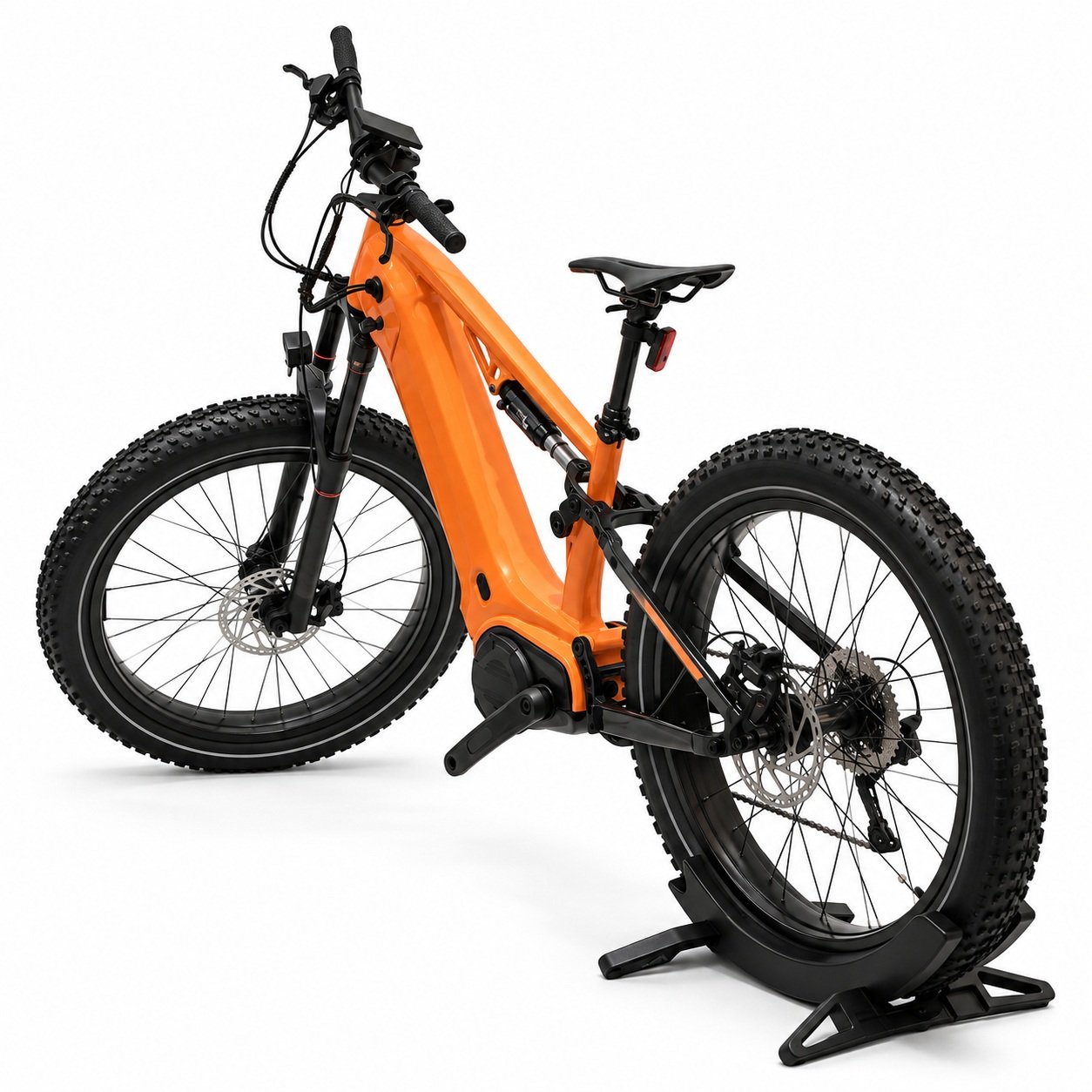

This premium fat tire electric mountain bike features a 750W M620 mid-drive motor, 48V 20Ah lithium battery with Samsung cells, hydraulic disc brakes, and full suspension. Its 26-inch fat tires, 200 kg load capacity, and up to 60 km range make it suitable for demanding trails, off-road riding, and long-distance recreational use.
