Fat Tire & Moped E-Bikes

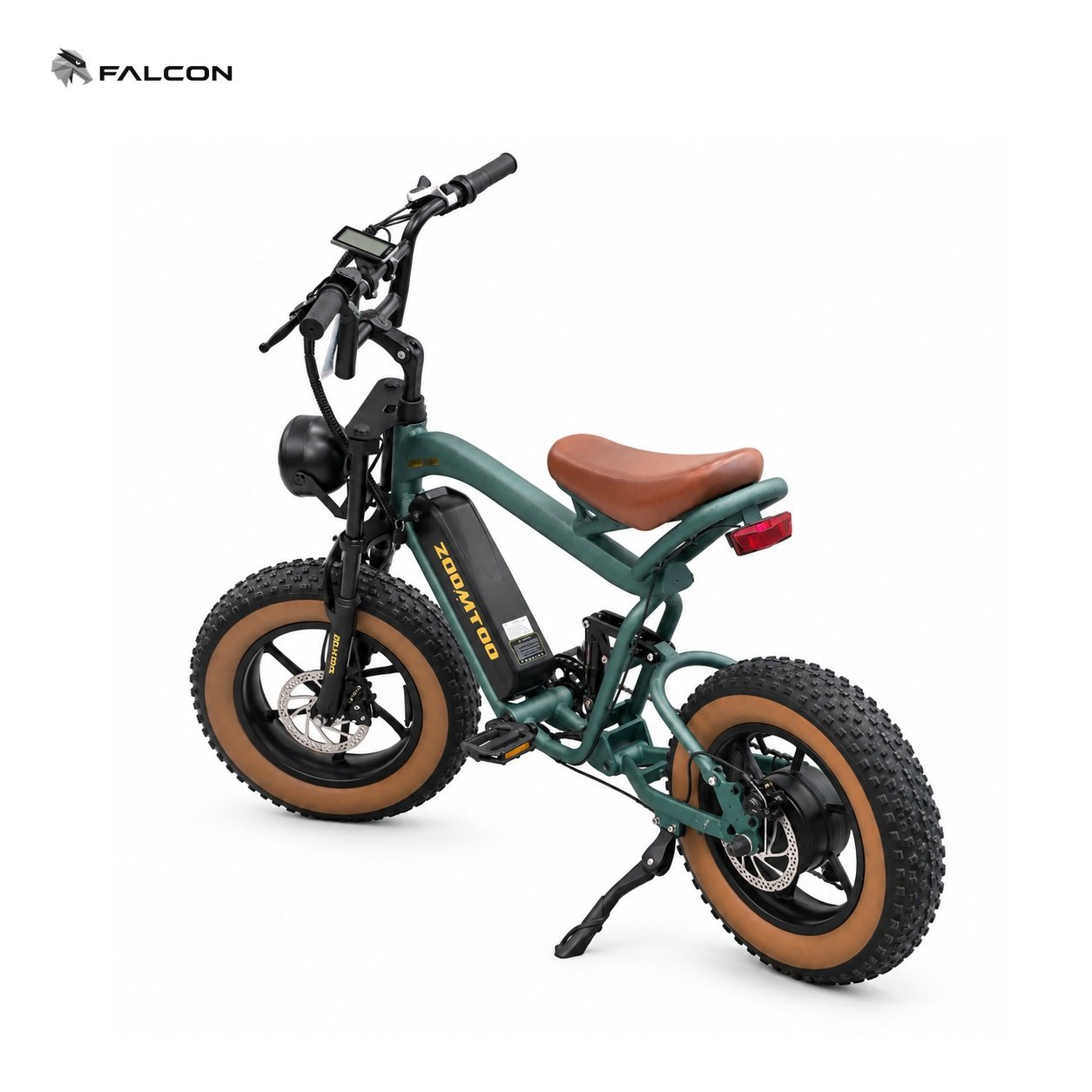

FALCON ZR-CP022
- Motor
- 350 W hub motor
- Battery
- 48 V 10.4 Ah Li-ion
- Maximum Load / Payload
- 180 kg
- Tire / Wheel
- 20-inch wheels / Inner Tube
FULL TECHNICAL SPECIFICATIONS
Verified model details.
POWER & PERFORMANCE
- Product Reference
- ZR-CP022
- Motor
- 350 W hub motor
- Battery
- 48 V 10.4 Ah Li-ion
- Controller / Sensor
- 9-MOSFET Controller
- Display
- Digital display
- Climbing Ability
- 15°
- Maximum Load / Payload
- 180 kg
- Maximum Speed
- 40 km/h / Shimano 7-Speed
- Range / Mileage
- 40 km
CHASSIS & COMPONENTS
- Frame
- High Carbon Steel
- Tire / Wheel
- 20-inch wheels / Inner Tube
- Hub
- Steel wheel construction
- Brake / Braking
- Disc Brake; braking distance
- Suspension / Fork
- Hydraulic front / spring rear
- Light
- LED headlight; LED taillight; LED turn signals
DIMENSIONS & LOGISTICS
- Size / Dimensions
- 1620 × 680 × 1060 mm
- Net Weight
- 35 kg
- Ground Clearance
- 300 mm
- Wheelbase
- 1030 mm
- Container Loading
- 200 units / 40-ft high-cube container
ADDITIONAL VERIFIED DETAILS
- Seat Height from Ground
- 750 mm
- Wheel Construction
- Inner Tube
- Frame Color
- Customization available
- Drive Control
- Twist throttle; stepless
- Transmission
- Shimano 7-Speed
- Minimum Order Quantity
- 100 units
