Fat Tire & Moped E-Bikes

FALCON ZR-CP019

This red fat tire electric city bike is designed for co […]

Motor
500 W rated / 700 W peak hub motor
Battery
48 V 20 Ah Li-ion
Maximum Load / Payload
180 kg
Tire / Wheel
20-inch wheels / Inner Tube
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP019
Motor
500 W rated / 700 W peak hub motor
Battery
48 V 20 Ah Li-ion
Controller / Sensor
Speed Sensor
Display
Digital display
Climbing Ability
15°
Maximum Load / Payload
180 kg
Maximum Speed
40 km/h / Shimano 7-Speed
Range / Mileage
50 km

CHASSIS & COMPONENTS

Frame
High Carbon Steel
Tire / Wheel
20-inch wheels / Inner Tube
Hub
Aluminum Alloy wheel construction
Brake / Braking
Disc Brake; braking distance
Suspension / Fork
Mechanical front / spring rear
Light

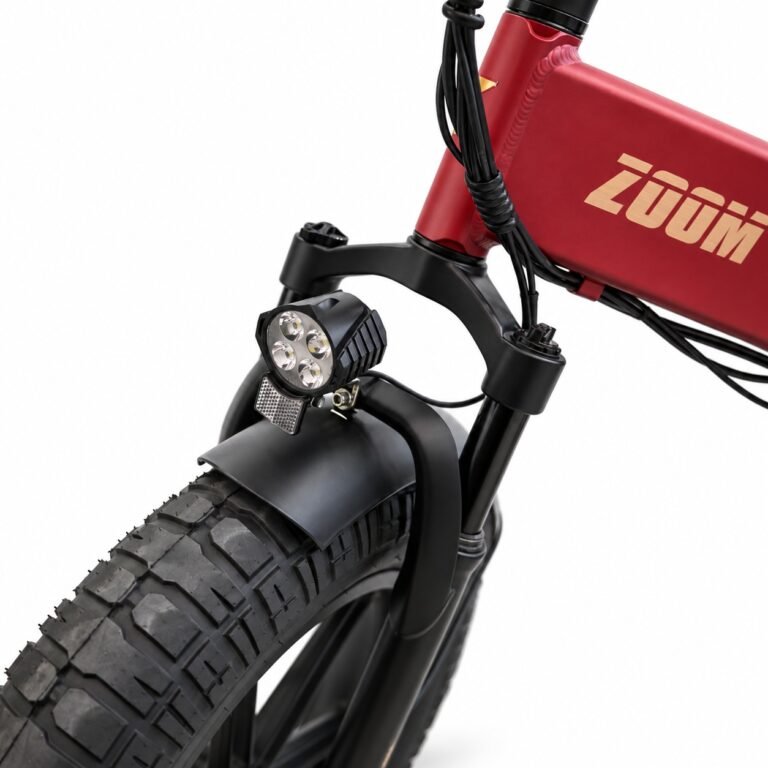

LED headlight; LED taillight

DIMENSIONS & LOGISTICS

Size / Dimensions
1730 × 640 × 1090 mm
Net Weight
22 kg
Ground Clearance
280 mm
Wheelbase
1170 mm
Container Loading
200 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Seat Height from Ground
890 mm
Wheel Construction
Inner Tube
Frame Color
Customization available
Drive Control
Twist throttle; stepless
Transmission
Shimano 7-Speed
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

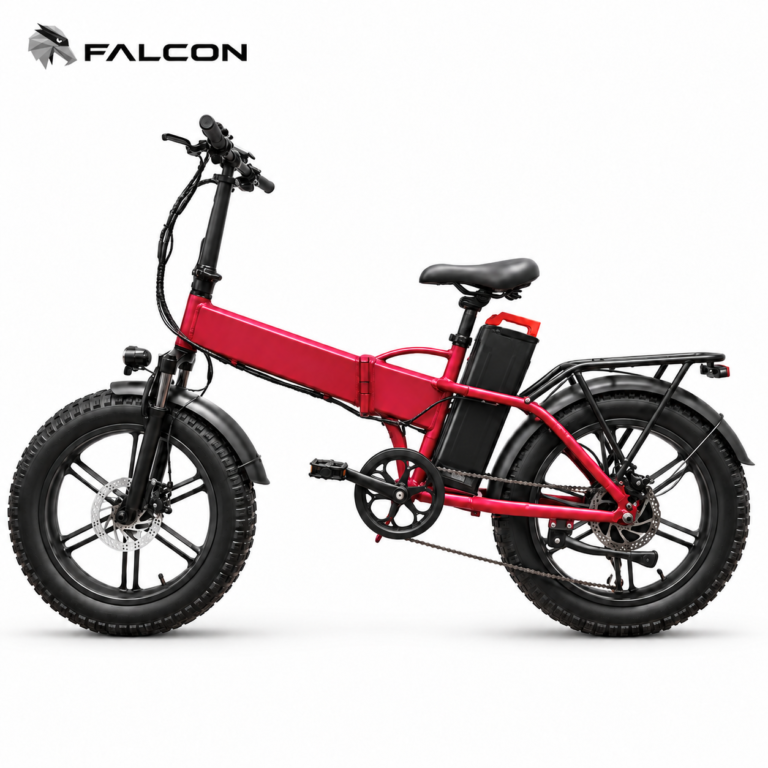

FALCON ZR-CP019

This red fat tire electric city bike is designed for comfortable urban commuting and everyday riding. It features wide tires, front suspension, disc brakes, and a rear cargo rack for added practicality. A versatile choice for city travel, shopping, leisure riding, and daily transportation.
