City & Commuter E-Bikes

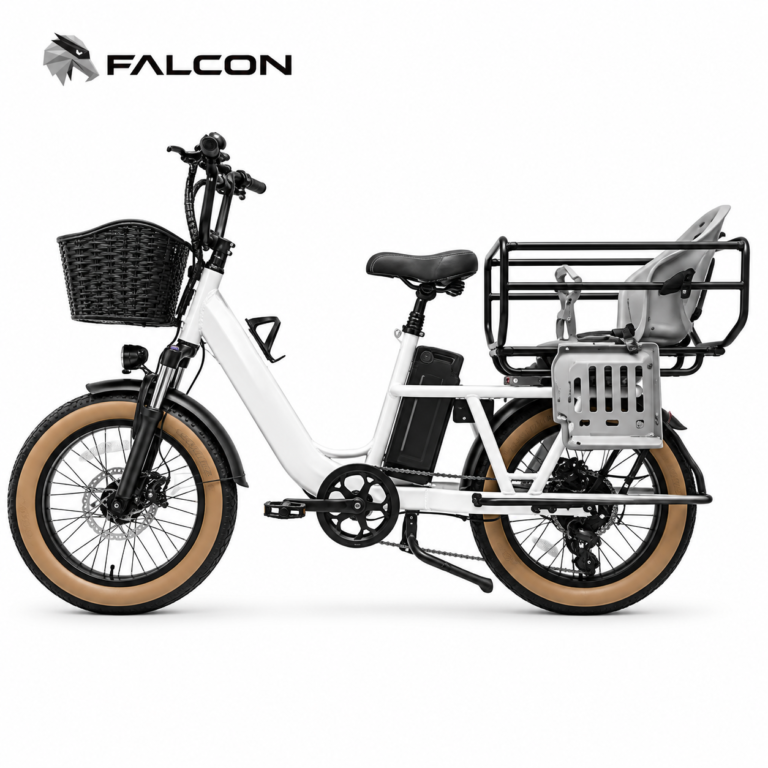

FALCON ZR-CP021
- Motor
- 800 W rated / 1,000 W peak hub motor
- Battery
- 48 V 20 Ah Li-ion
- Maximum Load / Payload
- 260 kg
- Tire / Wheel
- 20-inch wheels / Inner Tube
FULL TECHNICAL SPECIFICATIONS
Verified model details.
POWER & PERFORMANCE
- Product Reference
- ZR-CP021
- Motor
- 800 W rated / 1,000 W peak hub motor
- Battery
- 48 V 20 Ah Li-ion
- Controller / Sensor
- 9-MOSFET Controller

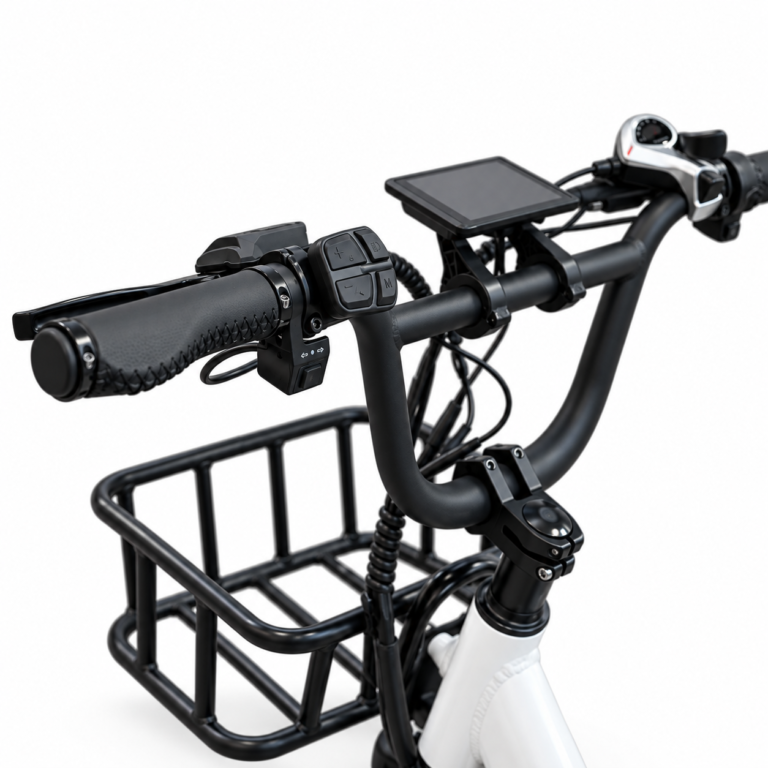

- Display
- Digital display
- Climbing Ability
- 15°
- Maximum Load / Payload
- 260 kg
- Maximum Speed
- 40 km/h / Shimano 7-Speed
- Range / Mileage
- 50 km
CHASSIS & COMPONENTS
- Frame
- High Carbon Steel
- Tire / Wheel
- 20-inch wheels / Inner Tube
- Hub
- Steel wheel construction
- Brake / Braking
- Disc Brake; braking distance
- Suspension / Fork
- Front: //; Rear: //
- Light
- Headlight: LED; Taillight: LED; Turn signals: //
DIMENSIONS & LOGISTICS
- Size / Dimensions
- 1960 × 700 × 1140 mm
- Net Weight
- 27 kg
- Ground Clearance
- 230 mm
- Wheelbase
- 1310 mm
- Container Loading
- 20-ft container: //; 40-ft container: //; 40-ft high-cube container: 180 units
ADDITIONAL VERIFIED DETAILS
- Seat Height from Ground
- 960 mm
- Wheel Construction
- Inner Tube
- Frame Color
- Customization available
- Drive Control
- Twist throttle; stepless
- Transmission
- Shimano 7-Speed
- Minimum Order Quantity
- 100 units
