Electric Scooters

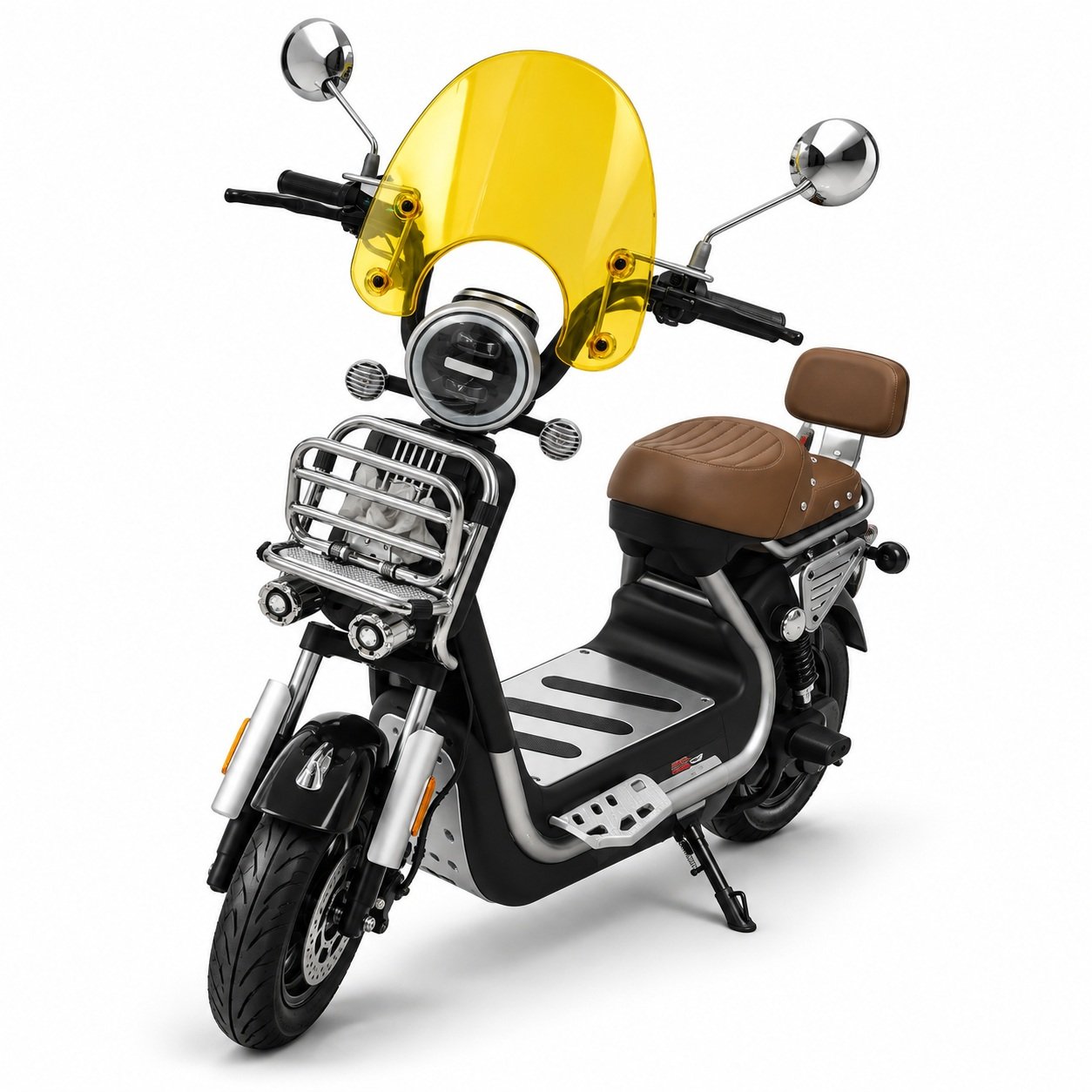

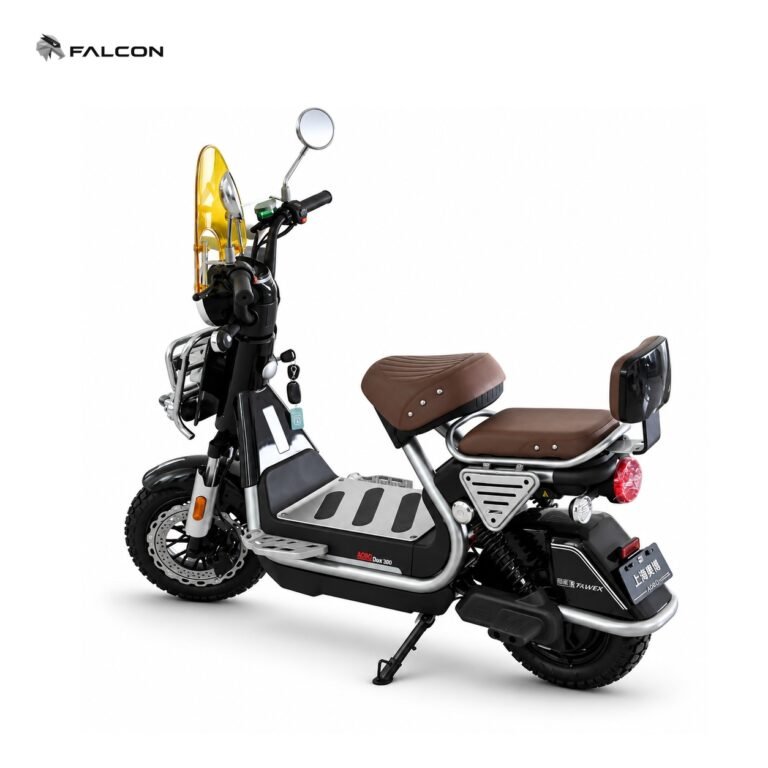

FALCON ZR-CP032

Motor: 800 W rated; 1,000 W peak; Brushless permanent-magnet motor
Battery: 60 V; 20 Ah; Lead-acid
Maximum Load / Payload: 200 kg
Tire / Wheel: 1230 (supplier size notation); Tubeless

REQUEST A QUOTE OEM / ODM

FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference: ZR-CP032
Motor: 800 W rated; 1,000 W peak; Brushless permanent-magnet motor
Battery: 60 V; 20 Ah; Lead-acid
Display: LCD display
Climbing Ability: 15°
Maximum Load / Payload: 200 kg
Maximum Speed: 45 km/h
Range / Mileage: 80 km

CHASSIS & COMPONENTS

Frame: Iron
Tire / Wheel: 1230 (supplier size notation); Tubeless
Hub: Iron / aluminum

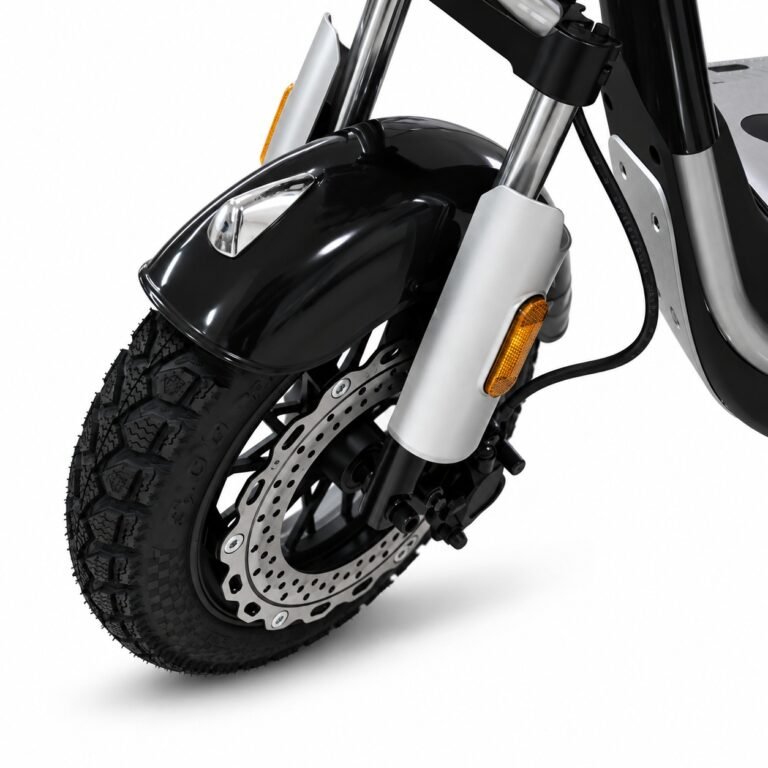

Brake / Braking: Front disc brake; rear drum brake

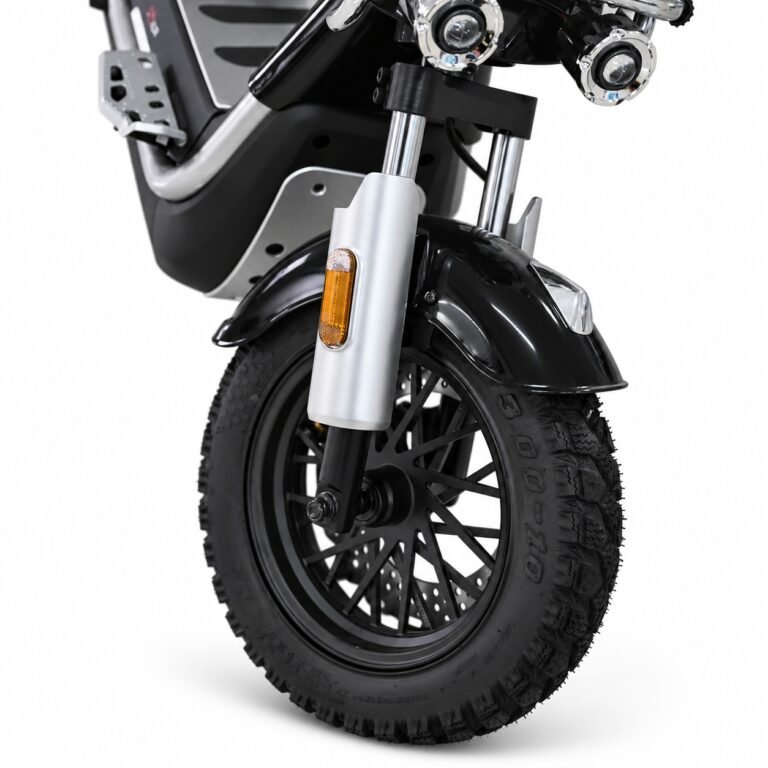

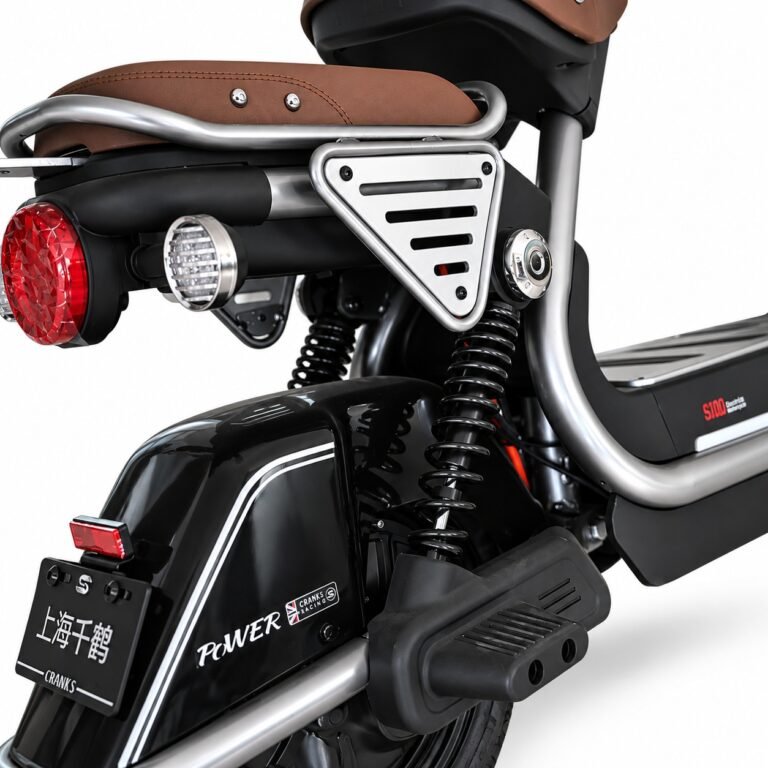

Suspension / Fork: Hydraulic front suspension; Mechanical rear suspension
Light: LED headlight; Taillight with brake light; Front and rear turn signals

DIMENSIONS & LOGISTICS

Size / Dimensions: 1600 × 600 × 1060 mm
Net Weight: 42 kg
Ground Clearance: 120 mm
Rear Axle: //
Wheelbase: 1100 mm
Track Width: //
Container Loading: 70 units / 20-ft container; 140 units / 40-ft container; 160 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model: Relang 80
Gross Weight: //
Outer Carton Material: 7-ply cardboard carton
Inner Color Box Material: //
Outer Carton Dimensions: 1500 × 340 × 800 mm
Folded Vehicle Dimensions: //
Seat Height from Ground: 750 mm
Drive Control: 3 speed settings
Motor Rated Voltage: 60 V
Motor Maximum RPM: 700 rpm
Motor Maximum Output Torque: 80 (unit unspecified)
Wheel Construction: Tubeless
Braking Distance: 7-15 m
Transmission: 3-speed transmission
Bluetooth: Bluetooth alarm
Audio System: Yes
Frame Color: Customizable
Minimum Order Quantity: 100 units
