Electric Dirt Bikes & Motorcycles

FALCON ZR-CP023

A wide-tire electric scooter platform developed for distributor, fleet and OEM/ODM programs.

Motor
1,000 W mid-drive motor
Battery
60 V 32 Ah Li-ion
Maximum Load / Payload
260 kg
Tire / Wheel
20-inch wheels / Inner Tube
REQUEST A QUOTE OEM / ODM
FULL TECHNICAL SPECIFICATIONS

Verified model details.

POWER & PERFORMANCE

Product Reference
ZR-CP023
Motor
1,000 W mid-drive motor
Battery
60 V 32 Ah Li-ion
Controller / Sensor
60 V / 30 A

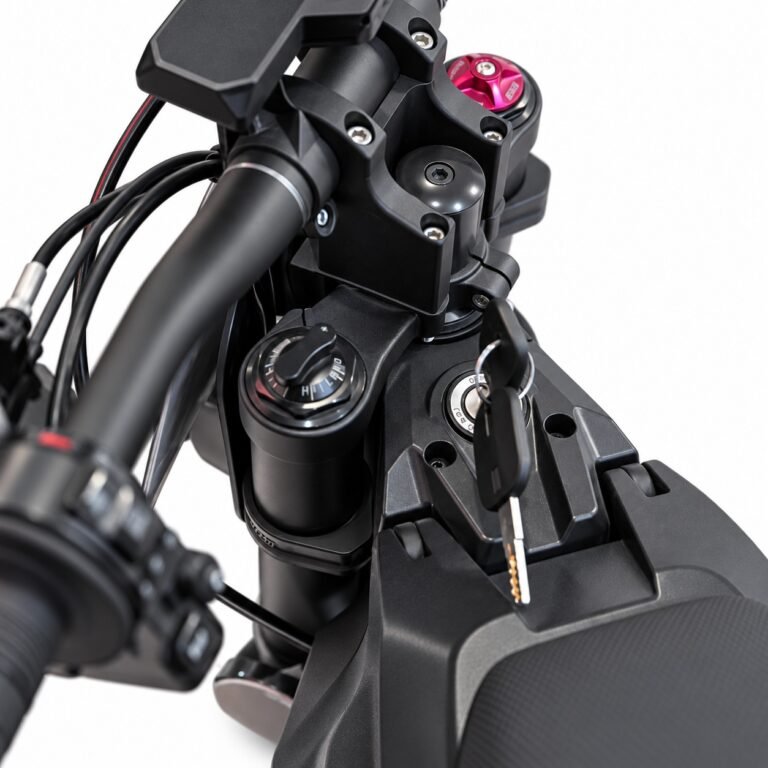

Display
Digital display
Climbing Ability
20°
Maximum Load / Payload
260 kg
Maximum Speed
50 km/h / Shimano 7-Speed
Range / Mileage
50 km

CHASSIS & COMPONENTS

Frame
High Carbon Steel

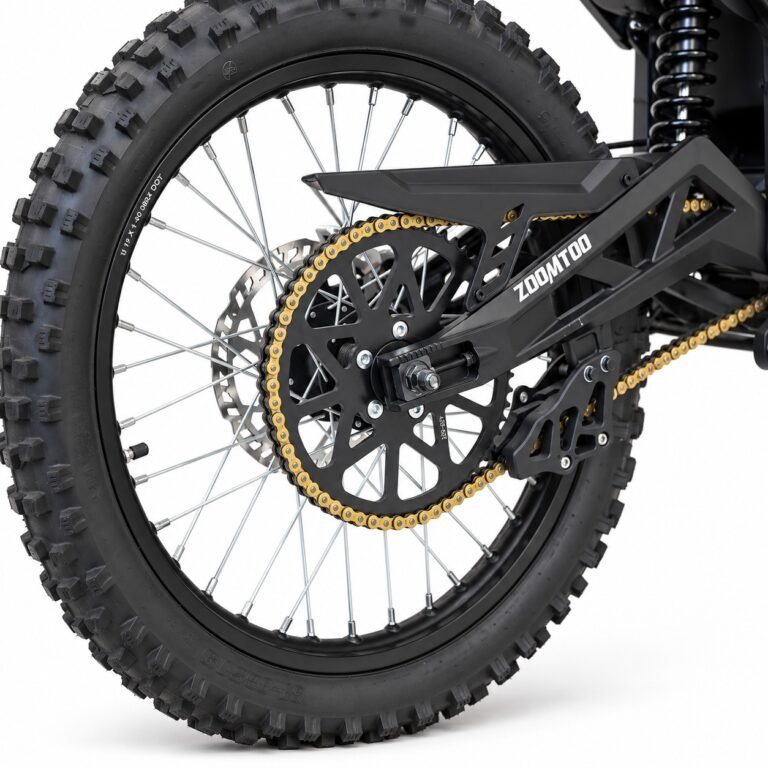

Tire / Wheel
20-inch wheels / Inner Tube
Hub
Steel wheel construction

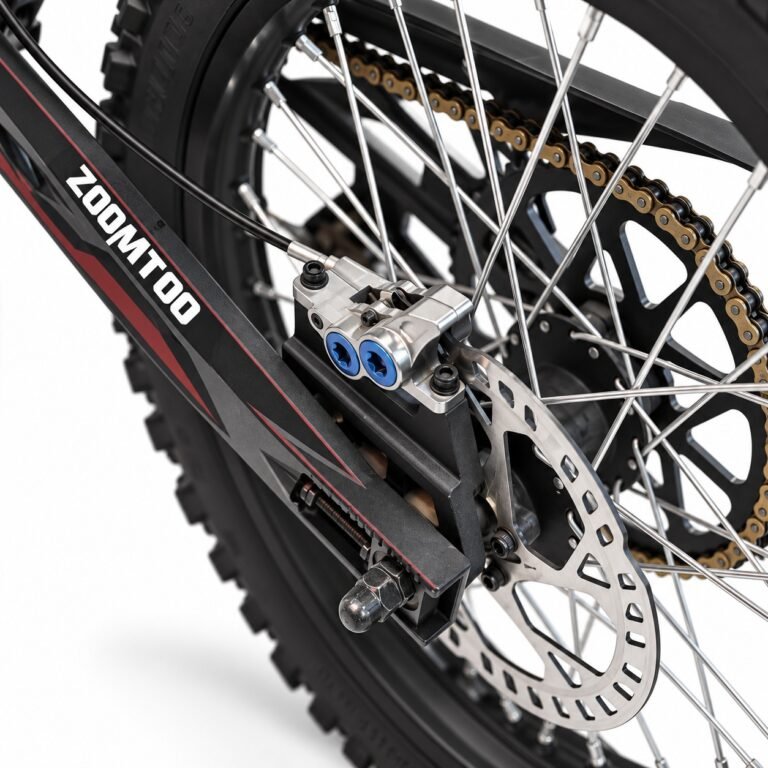

Brake / Braking
Disc Brake; braking distance
Suspension / Fork
Hydraulic front / spring rear
Light
LED headlight; LED taillight; LED turn signals

DIMENSIONS & LOGISTICS

Size / Dimensions
1720 × 680 × 990 mm
Net Weight
43 kg
Ground Clearance
280 mm
Wheelbase
1170 mm
Container Loading
200 units / 40-ft high-cube container

ADDITIONAL VERIFIED DETAILS

Manufacturer Model
Off-Road 3000
Seat Height from Ground
790 mm
Wheel Construction
Inner Tube
Frame Color
Customization available
Front Suspension
Hydraulic
Rear Suspension
Spring
40-ft High-Cube Container
200 units

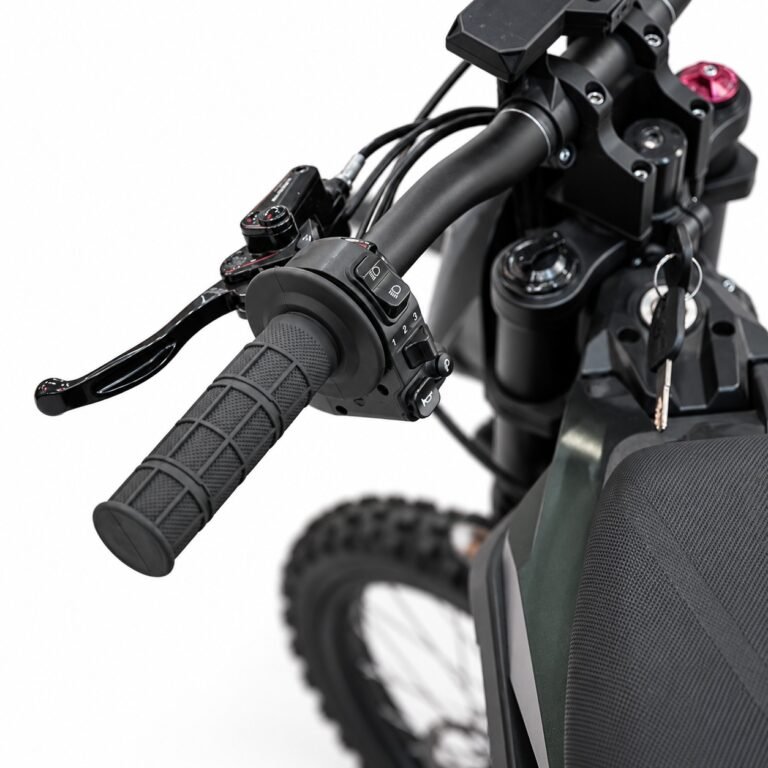

Drive Control
Twist throttle; stepless
Transmission
Shimano 7-Speed
Minimum Order Quantity
100 units
PRODUCT OVERVIEW

FALCON ZR-CP023

The FALCON ZR-CP030 combines a high-carbon steel frame, a 1,200 W rated motor, a 60 V 30 Ah lithium battery and configurable frame colors in a practical wide-tire electric platform.
